The Optimum 4-Point Mortice Lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Optimum 4-Point provides increased security with up to four points of locking. The shootbolt provides added security and seal compression, designed specifically for the New Zealand environment
Designed to be used in conjunction with the Verona and Palladium furniture ranges.
Features
Features 4 points of locking from the latch, deadbolt and two shootbolts (not included)
Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
The handing of the lockset is adjusted by reversing the orientation of the latch bolt
30mm backset
85mm pitch
24mm long throw on deadbolt
Stainless steel forend plate
Adjustable latch projection
Latch wear insert included
Achieves Australian Standards AS4145: 1993 (Part 2) Security Level S2 and Durability Level D2
Can be paired with Euro cylinders
When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors

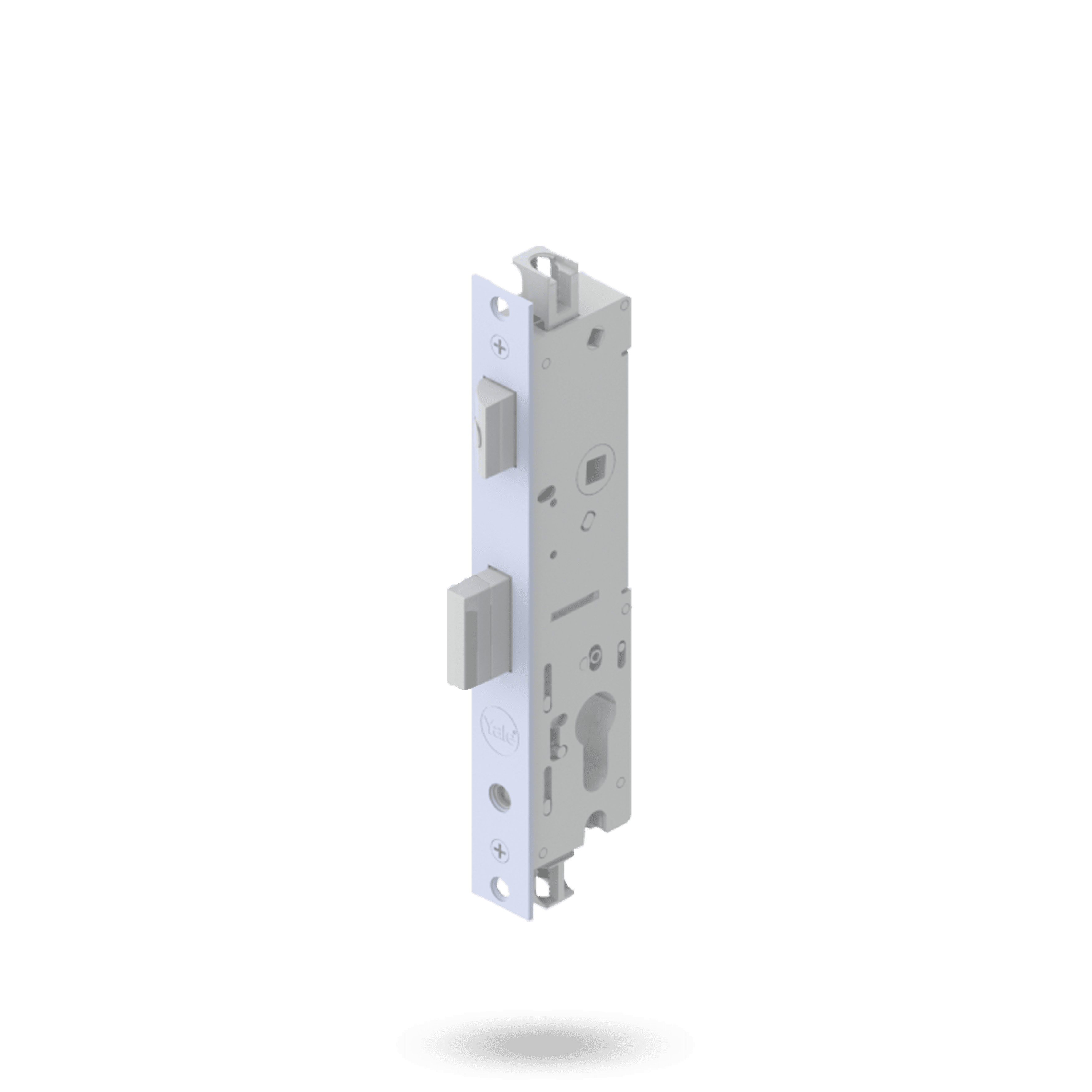

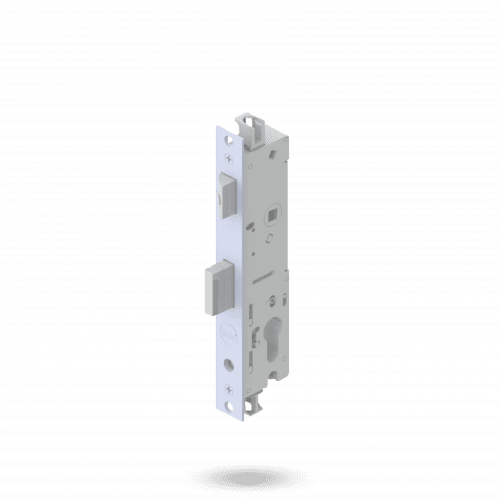

Yale Optimum 30mm Backset 4 Point Lock
$149.00 incl gst
Description
The Optimum 4-Point Mortice Lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Optimum 4-Point provides increased security with up to four points of locking. The shootbolt provides added security and seal compression, designed specifically for the New Zealand environment
Designed to be used in conjunction with the Verona and Palladium furniture ranges.
Features
