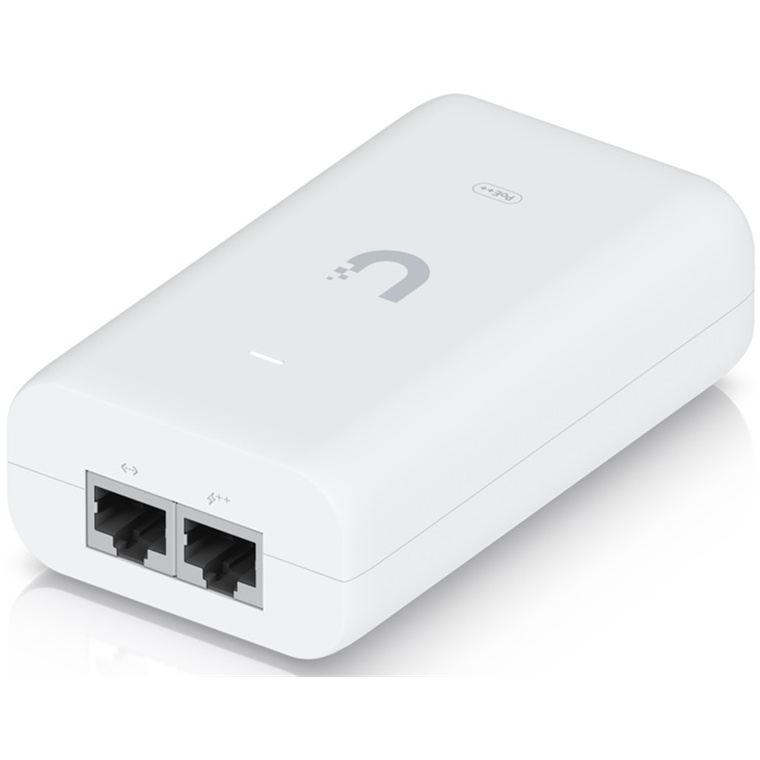

Ubiquiti UniFi Gigabit 60W PoE++ Power Injector (U-PoE-Plus-Plus)

Description

The Ubiquiti Gigabit 60W PoE++ Injector (U-PoE-Plus-Plus) is a high-wattage hardware power adapter engineered to supply heavy electrical currents over a single data cable. Operating under the IEEE 802.3bt standard, this unit serves as the essential middleman power source required to fire up the UniFi Access Door Hub, downstream proximity readers, and commercial electronic locks without needing a costly enterprise-tier network switch upgrade.

• Essential Door Component: Supplies the mandatory 60W PoE++ power block required by the UniFi Access Hub.
• Industrial Surge Suppression: Built-in surge, peak pulse, and overcurrent clamp protection to shield door equipment from electrical faults.
• Gigabit Connectivity: Maintains 1000 Mbps data pass-through speeds for lightning-fast credential verification.
• Wellington Certified Installation: Full physical integration, cabinet patch routing, and electrical isolation testing.

Heavy-Duty Power Injection for Smart Access Systems

Bridge the electrical gap between your standard office data networks and heavy-duty smart door hardware with the Ubiquiti UniFi 60W PoE++ Injector. While standard network switches are only built to handle lower-draw devices like basic VoIP phones or standard office computers, physical access control ecosystems demand significant operational power. This adapter offloads that weight, feeding clean, uninterrupted power safely down the line.

Wellington Professional Supply & Installation Services

Improperly calculated Power over Ethernet (PoE) configurations are the primary cause of electronic door lock failure and software brownouts. We provide a complete end-to-end Supply and Install service across the greater Wellington region—including Wellington CBD, Lower Hutt, Upper Hutt, and Porirua.

• Mandatory Site Assessment: Our engineering team checks your existing equipment shelves, calculates combined wattage draws for locks and card readers, and sets up a clean, code-compliant patch layout.
• Hardware Overcurrent Shielding: We properly mount and ground the unit inside your IT cabinet to absorb static discharges, safeguarding the delicate electronics inside your exterior entry panels against the harsh Wellington element variations.
• Zero Third-Party Hardware Handing: To guarantee system performance, network stability, and long-term warranty coverage, we only deploy hardware sourced directly through our verified supply chains. We do not provide labor-only installation for externally purchased equipment.

Key Hardware Highlights

• Maximum Wattage Output: Delivers a continuous, robust 60 Watts of electricity running at 48V DC, meeting the specific peak demands of multi-reader single-door deployments.
• Advanced Clamping Protection: Features industrial-grade ESD and lightning surge protection pathways. Clamps data lines at 11V and power pathways at 60V to keep hardware completely isolated during local grid anomalies.
• Seamless Gateway Companionship: Perfect pairing for the compact UniFi Cloud Gateway Max (UCG-Max). It allows your installation team to keep the core network tiny and cost-effective while adding raw power where the doors need it most.
• Visual Diagnostics: Includes a front-facing LED indicator light to let your local administrators or our field technicians verify live operational statuses at a glance.

Technical Specifications

Manufacturer	Ubiquiti Networks
Model SKU / Part Number	U-PoE++ / U-PoE-Plus-Plus
PoE Standard	PoE++ (IEEE 802.3bt Type 3)
Output Power Capacity	60 Watt Max.
Output Voltage	48V DC @ 1.25A
Data Interface Ports	(1) Shielded Gigabit LAN In (Data Input) (1) Shielded Gigabit LAN Out (PoE+Data Output)
Powering Configuration	4-Pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Input Voltage Scope	AC 100-240 V @ 50/60 Hz
Clamping Surge Protection	11V Data / 60V Power
Hardware Dimensions	106 x 63 x 34 mm
Weight	210 g
