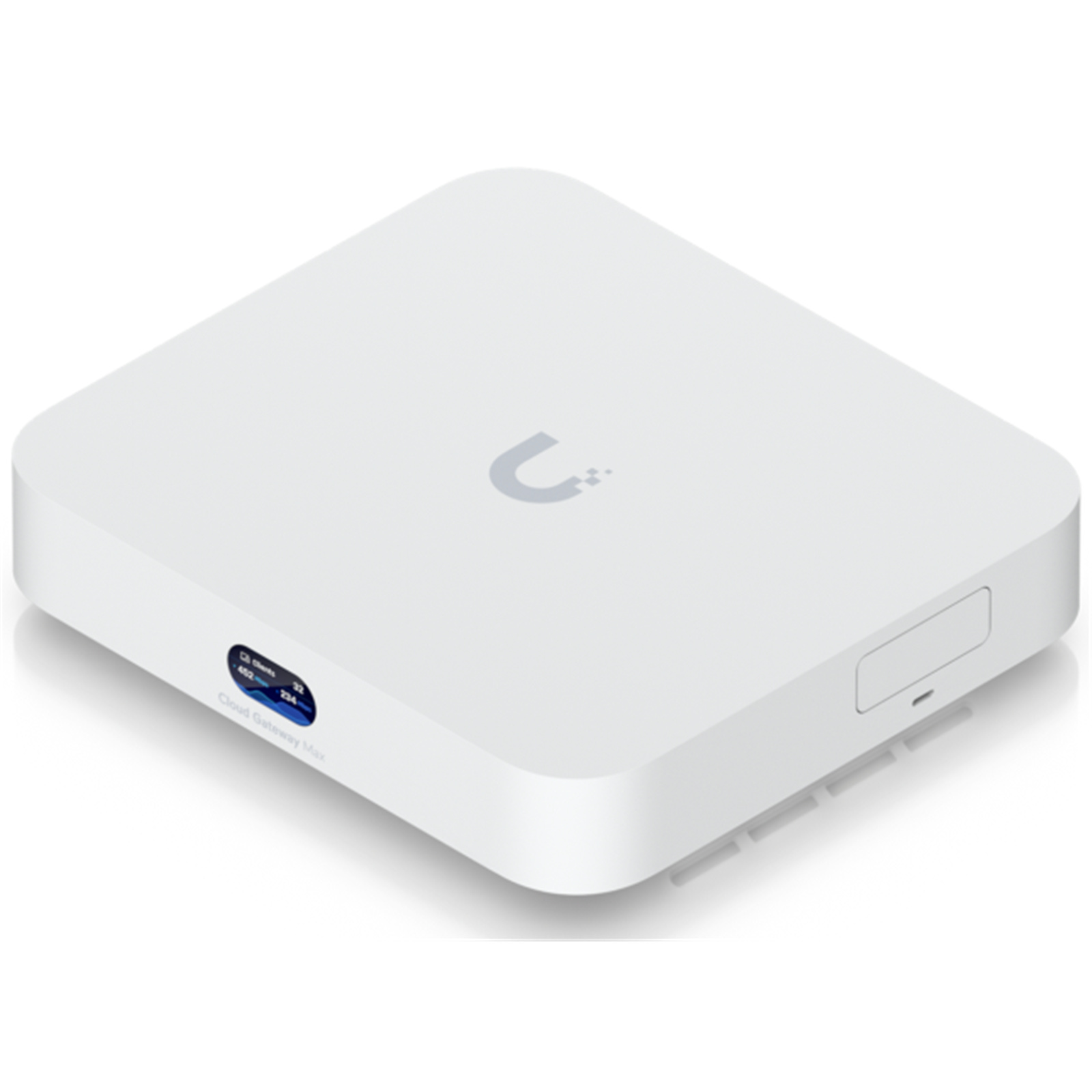

Ubiquiti UniFi Cloud Gateway Max 2.5G Core Network Console (UCG-Max-512GB)

Description

The Ubiquiti UniFi Cloud Gateway Max (UCG-Max-512GB) is a compact, ultra-powerful 2.5 Gbps multi-application network gateway designed to host enterprise-grade software ecosystems. Equipped with an integrated 512GB NVMe SSD, this unit serves as the mandatory central processing “brain” required to drive UniFi Access door security and UniFi Protect smart surveillance systems for modern business facilities.

• Mandatory System Brain: Prerequisite console to host and run the UniFi Access ecosystem.
• Multi-Gigabit Routing: Full 2.5 Gbps performance across all WAN and LAN interfaces.
• Built-In NVMe Storage: Factory-installed 512GB high-speed SSD for secure local security logs and video logs.
• Wellington Certified Installation: Full end-to-end network deployment and software provisioning.

Centralized Command for Commercial Networks

Consolidate your entire business infrastructure into a single, high-performance desktop hub with the Ubiquiti UniFi Cloud Gateway Max. Engineered specifically to meet the high data demands of modern small-to-medium offices, retail spaces, and warehouses, this gateway delivers lightning-fast internet routing while natively driving your premises’ physical door security and visual auditing systems.

Wellington Professional Supply & Installation Services

Deploying an enterprise network gateway requires careful subnet mapping, firewall hardening, and correct downstream power engineering. We provide a complete end-to-end Supply and Install service across the greater Wellington region—including Wellington CBD, Lower Hutt, Upper Hutt, and Porirua.

• Mandatory Site Assessment: Our technical team evaluates your incoming fiber connection (including Chorus ONT provisions) and verifies internal communication rack or mounting cabinet availability.
• Network Integration: We handle full firewall configuration, secure staff Wi-Fi separation, and optimize internal data flow paths to isolate high-security access control layers.
• Zero Third-Party Hardware Handing: To guarantee system uptime, network performance, and warranty integrity, we only deploy hardware sourced directly through our verified supply chains. We do not provide labor-only installation for externally purchased equipment.

Key Hardware Highlights

• Advanced Security Processing: Features enterprise-grade Next-Generation Firewall (NGFW) protections, including deep packet inspection (DPI), IPS/IDS threat detection, and advanced country-based traffic blocking.
• Massive Software Capacity: Runs the full suite of UniFi applications. Seamlessly handles up to 10 UniFi Access smart doors (under standalone operation) or coordinates a blended network of entry points and security cameras.
• High-Speed Local Switch: Equipped with (1) 2.5 Gbps WAN port and (4) 2.5 Gbps LAN ports to eliminate internal network bottlenecks and fully support premium local business broadband packages.
• Dual-WAN Failover Ready: Any LAN port can be digitally remapped to act as a secondary internet input. Pair your primary fiber with a cellular 4G/5G backup modem to ensure your building locks and remote mobile cloud features never go offline during a power or utility drop.
• Zero Computer Overhead: Day-to-day office management requires no local server hardware or dedicated PC. Business managers can configure schedules, add keyfobs, and track system status natively via the free UniFi Identity smartphone app.

Important Deployment Notes

Power Architecture Warning: The network ports on the rear of the Cloud Gateway Max do not output Power over Ethernet (PoE). To distribute power downstream to hardware components like the UniFi Access Door Hub or Wi-Fi Access Points, this unit must be linked to a separate, high-wattage external PoE++ switch or standalone power injectors. Power dependencies will be calculated and provided during your on-site quote assessment.

Factory-Installed Storage Stability: This product model includes a pre-installed 512GB M.2 NVMe SSD. It is fully ready out of the box to store decades of secure cryptographic text-based door entry logs, user profile tracking indices, and motion-triggered video intercom clips without needing extra external media or subscription storage profiles.

Technical Specifications

Manufacturer	Ubiquiti Networks
Model SKU	UCG-Max (512GB Variant)
Processor	Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory	3 GB DDR4
On-Board Storage	512GB M.2 NVMe SSD (Factory Installed)
Networking Interfaces	(1) 2.5 Gbps RJ45 WAN Port (4) 2.5 Gbps RJ45 LAN Ports
Power Method	USB Type-C (5V DC, 5A Adapter Included)
Max. Power Consumption	16.1W (Excluding software/drive load overhead)
Supported Ecosystems	UniFi Network, UniFi Access, UniFi Protect, UniFi Talk
IDS/IPS Throughput	1.5 Gbps (Full threat management processing)
Enclosure Dimensions	141.8 x 127.6 x 30 mm
