Lockwood 693 Cupboard Lock

Description

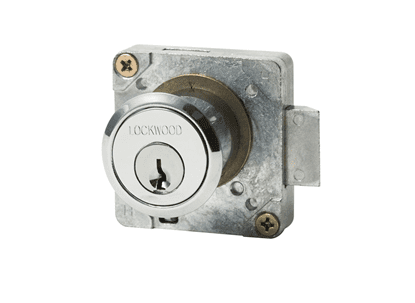

Lockwood 693 Cupboard Locks

A quality key-operated 5 pin tumbler cupboard lock.

Features of the 693 Pin Tumbler Cupboard Lock

• Manufactured primarily from diecast zinc and brass components

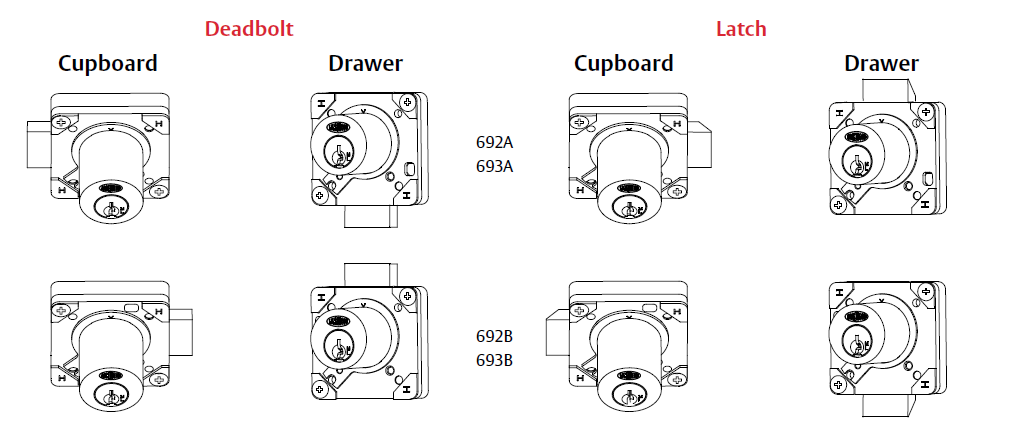

• Cylinder can be readily positioned to suit either drawer or cupboard installation

Dimensions

Materials

Bolt
Zinc, 10 mm projection

Cylinder
5 pin tumbler mechanism
Brass cylinder and brass barrel – 27mm diameter, 26.5 mm projection

Keying

Standard Keying

• Supplied individually keyed with two keys per lock
• 78,000 key combinations
• Key blank KB2015P

5 Pin Straight

Description	Part Number
5-Pin (RH Latching)	L693ASC
5-Pin (LH Latching)	L693BSC
