Description

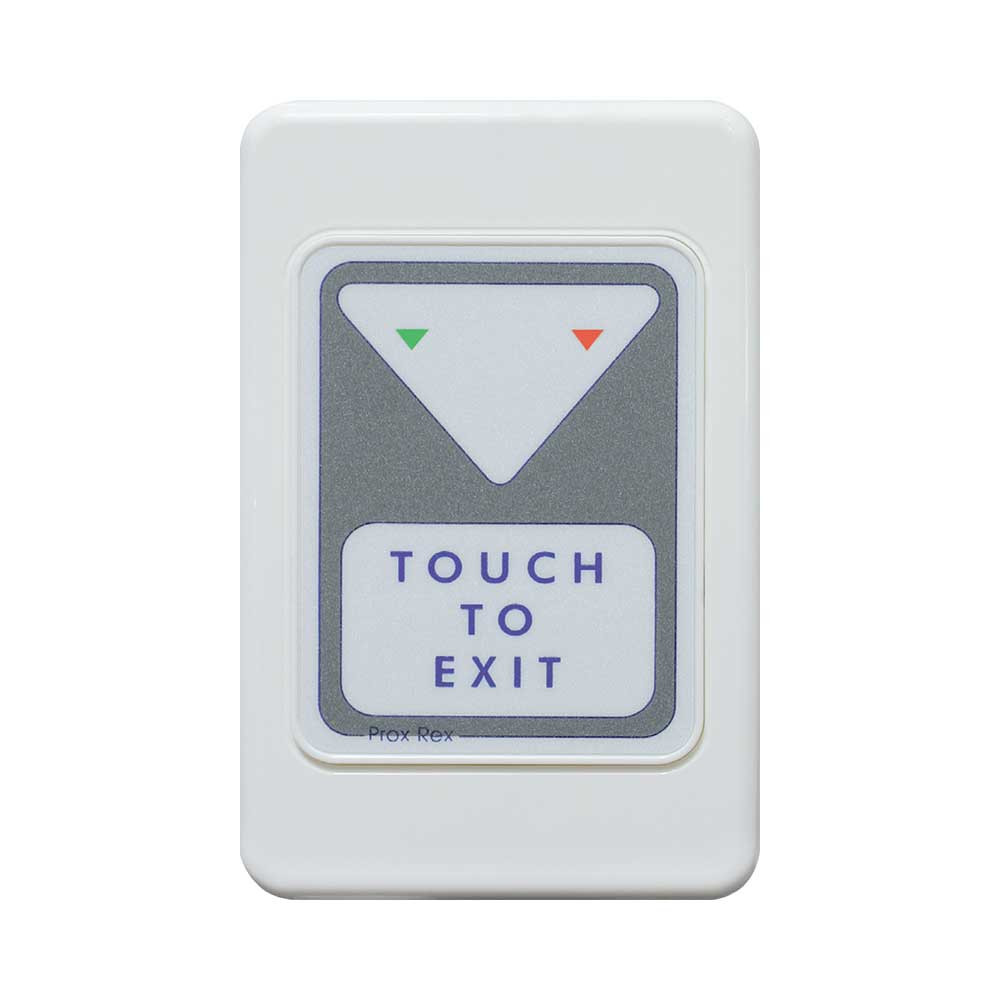

Trojan PROXREX Exit Button

The Trjan PROXREX Exit Button is a low cost, touch-less switch unit designed for use with Access Control Systems and is an ideal replacement for conventional push buttons, door release buttons, call switches, etc.

Features

• Requires only the touch of a finger to activate, making it perfect for fast and easy egress, and an advantage for the elderly and disabled.
• Can be used for a number of applications
• Vandal-Resistant – all components are behind the plate
• Perfect replacement for door release buttons that are in high usage areas.
• No moving parts
• Ideal for areas were infection control is important, easy clean and fade resistant
• Two LED indicators provide visual confirmation for heartbeat (RED) and operated (Green)
• Built-in sounder to provide audible confirmation of operation

Specifications

• Single gang profile fits standard electrical flush box
• Power requirements 9 to 16Vdc – 50mA at 13.6 Vdc
• 1 set of Clean NO and NC output on connector
• 1 set of Clean NO and NC output on PIN header
• The contacts are rated at 1 AMP 30Vdc
• The switch is fully self-calibrating
• The faceplate will not deteriorate over time and is easily cleaned
• C-Tick, RCM, RoHS Certified
