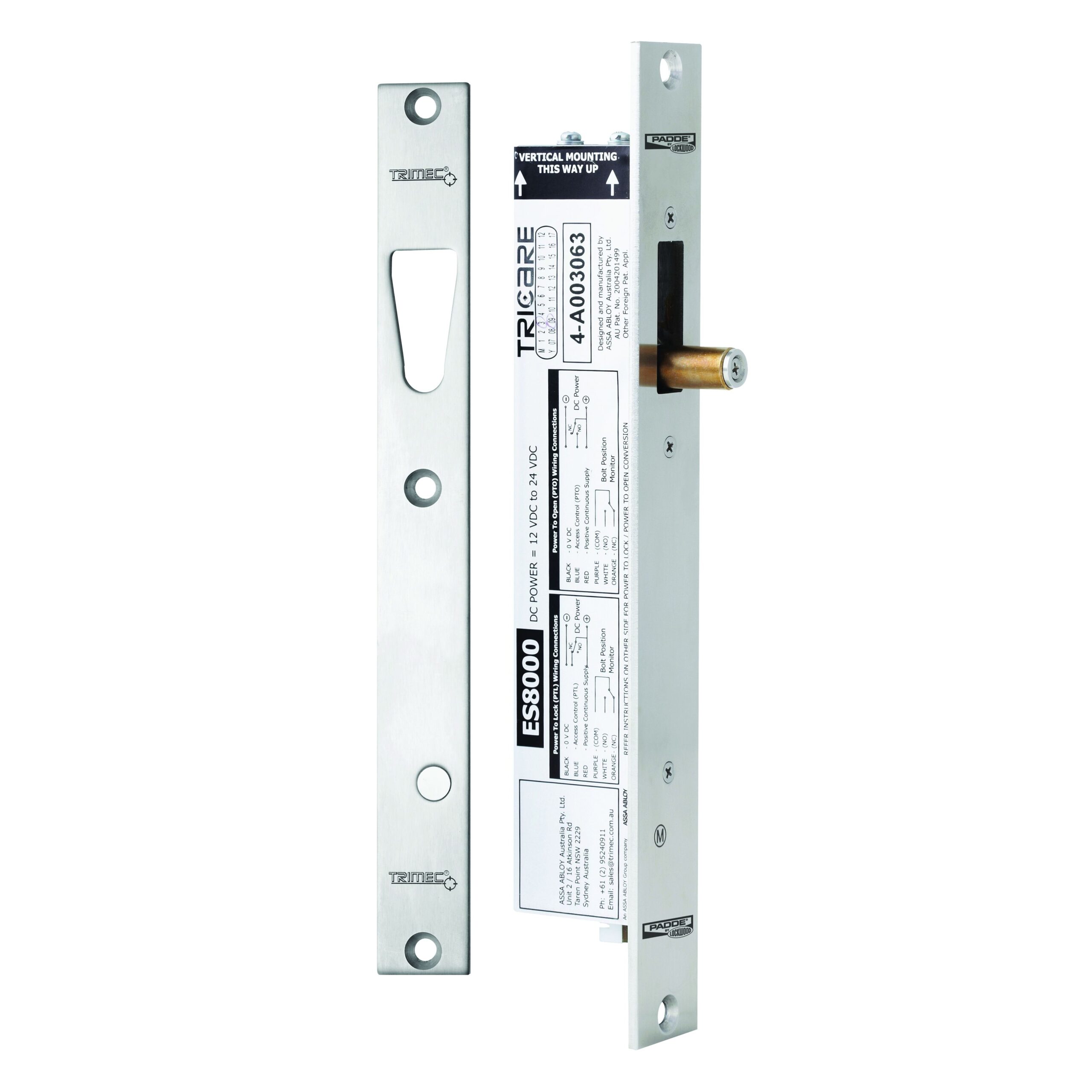

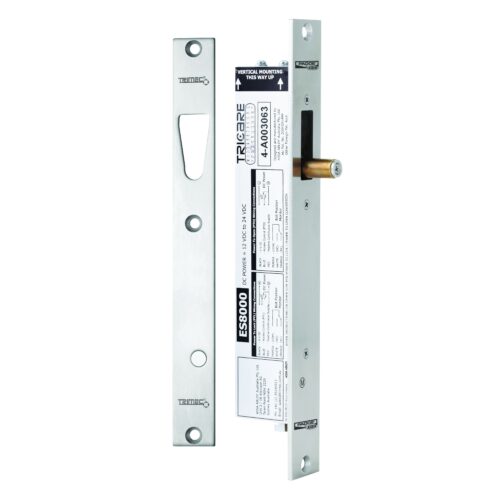

The Trimec ES8000 V Lock is a high torque motorised bolt that moves from the vertical position to the horizontal state when locked. The bolt moves into the V shaped strike plate pulling the door in line with the lock. The high torque motorised bolt can be concealed from view or surface mounted and has the worlds first fail-open motor locking mechanism.
Trimec ES8000 Features
Side load – pre load Capable Lock will unlock with up to 15kg of side pressure, when wired in 3 wire mode
Door misalignment of up to 3.5mm +/-
Power to Lock (Fail Safe) / Power to Open (Fail Secure) field configurable
High torque motorised locking and unlocking (3 wire mode)
High Speed Operation (unlocks in less than 1 second)
Surface Mount Accessory Kit available as additional part
Ideal for 180° swing through glass door applications Multiple Orientation (requires glass door brackets)
Can be mounted vertically or horizontally (must be mounted horizontally on exterior doors)
Trimec ES8000 V Lock
$1229.34 incl gst
Description
The Trimec ES8000 V Lock is a high torque motorised bolt that moves from the vertical position to the horizontal state when locked. The bolt moves into the V shaped strike plate pulling the door in line with the lock. The high torque motorised bolt can be concealed from view or surface mounted and has the worlds first fail-open motor locking mechanism.
Trimec ES8000 Features
Additional information
Trimec
