Trimec ES111 Series 12/24VDC Weather-Resistant Electric Strike | 110111-060M

Description

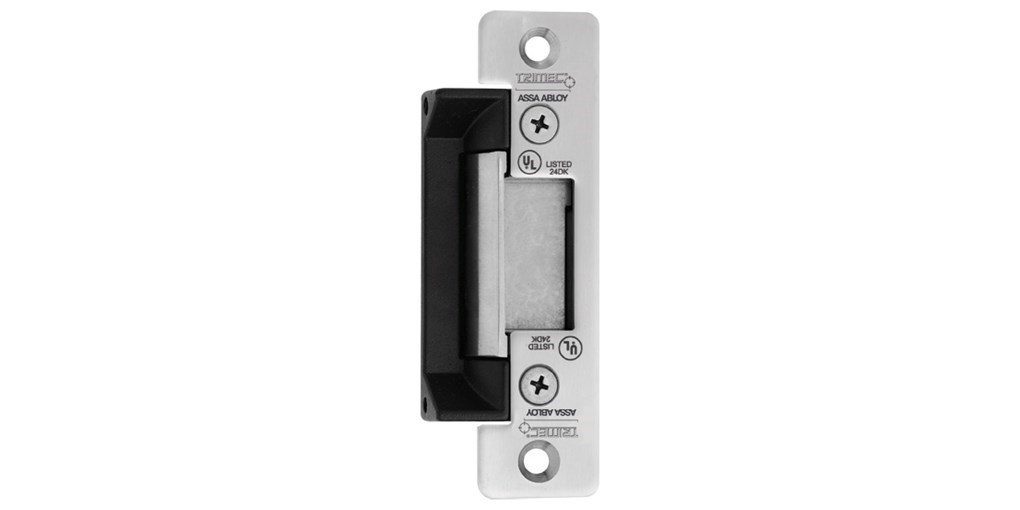

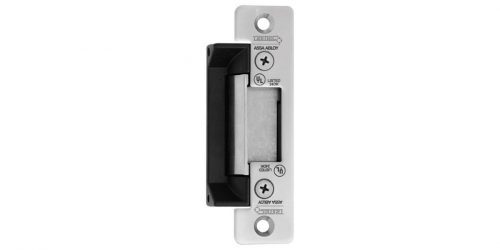

The Trimec ES111 Series (Part Number: 110111-060M) is a highly adaptable, robust commercial electric strike engineered for integration with access control networks across New Zealand. Built with a deeper-than-normal strike keeper area, this centerline strike operates reliably with an extensive range of locksets and latchbolts up to 18mm.

Architectural Retrofit & Faceplate Flexibility

One of the primary advantages of specifying the Trimec ES111 framework is its modular compatibility with extended faceplate kits and extension lips. If you are upgrading a door frame fitted with tall or oversized legacy strike plates, the ES111 can be customized with standard architectural long faceplates (such as ANSI Long formats). This allows security installers to cleanly cover larger mortise frame cutouts, eliminating raw gaps or vulnerabilities without requiring costly timber frame modifications or structural aluminium welding.

Engineered Weather Resistance

Following strict physical guidelines for exposed applications, the ES111 features an international IP56 environmental rating. Its one-piece cast aluminium body housing, solid stainless steel striker mechanism, and hardened locking pins provide reliable protection against heavy wind-driven rain and dust ingress. This engineering profile makes it an excellent choice for external perimeter entry points and exposed pedestrian gate assemblies where standard indoor electronic locks would suffer moisture degradation.

Key Performance Specifications:

• Holding Strength: Verified 680kg static strength rating for high-security applications.
• Dual Voltage Input: Operates natively on both 12Vdc and 24Vdc power setups.
• Field Changeable Operation: Site-interchangeable configuration between Fail Safe (Power to Lock) and Fail Secure (Power to Open) to streamline project deployment.
• Duty Cycle Solenoid: Continuously rated solenoid mechanism suitable for continuous power supply loops.
• Endurance Tested: Cycle tested to 1,000,000 operations for long-term commercial performance.
• Monitoring Layout: This model is the standard, non-monitored hardware variant.

Note: If your facility layout requires advanced multi-stage tracking telemetry—such as lock status sensing (LSS), door status sensor switches (DSS), or anti-tamper signalling—please consult our trade engineering staff regarding the fully monitored alternative configurations within the broader ASSA ABLOY Trimec product family.
