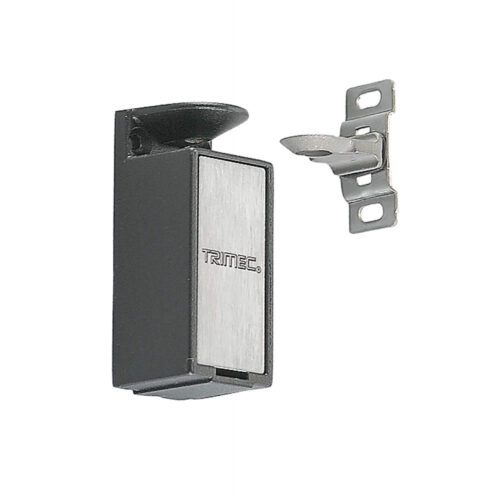

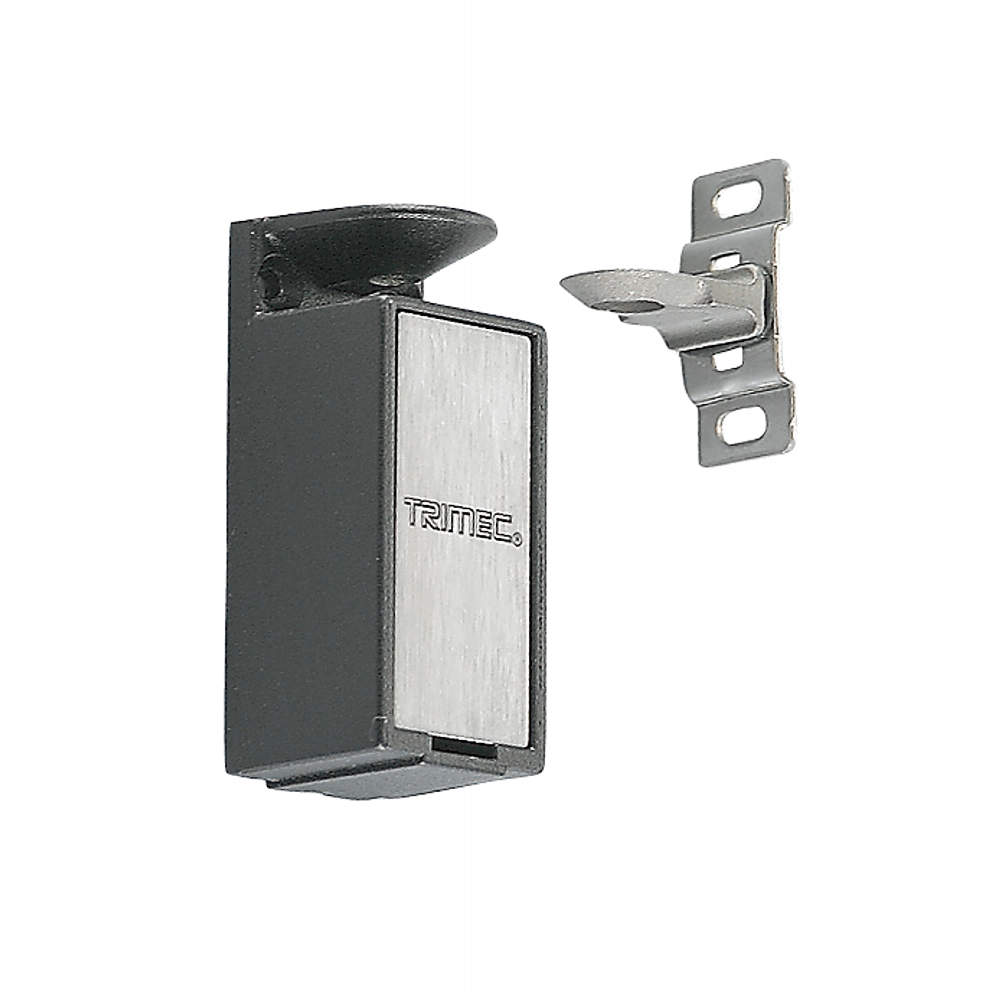

The EL110 Cabinet lock is a small cast aluminium lock designed for cabinets having either swing or sliding doors where access control is a requirement and keys are not the total answer. The Cabinet Lock designed to hold 150kgs (330 lbs) can be mounted both vertically and horizontally.
The EL110 can be controlled by any existing access control system or simply controlled through a remote key pad or key switch and suitable for installations that have only one or multiple cabinet applications.
- Preset to power to open
- Mode conversion allows lock to be changed from power to lock to power to open
- flexible alignment with a 5mm xy adjustment after installation
- low current consumption using only 187ma with 12 volts dc
- industry standard and can be connected to any key switch, key pad, card reader or access control system
- 12 volts dc
- solenoid rated for continuous use
- c-tick and ce compliant
- approval electromagnetic compatibility – en500181 -1 exempt
- 5 years guarantee

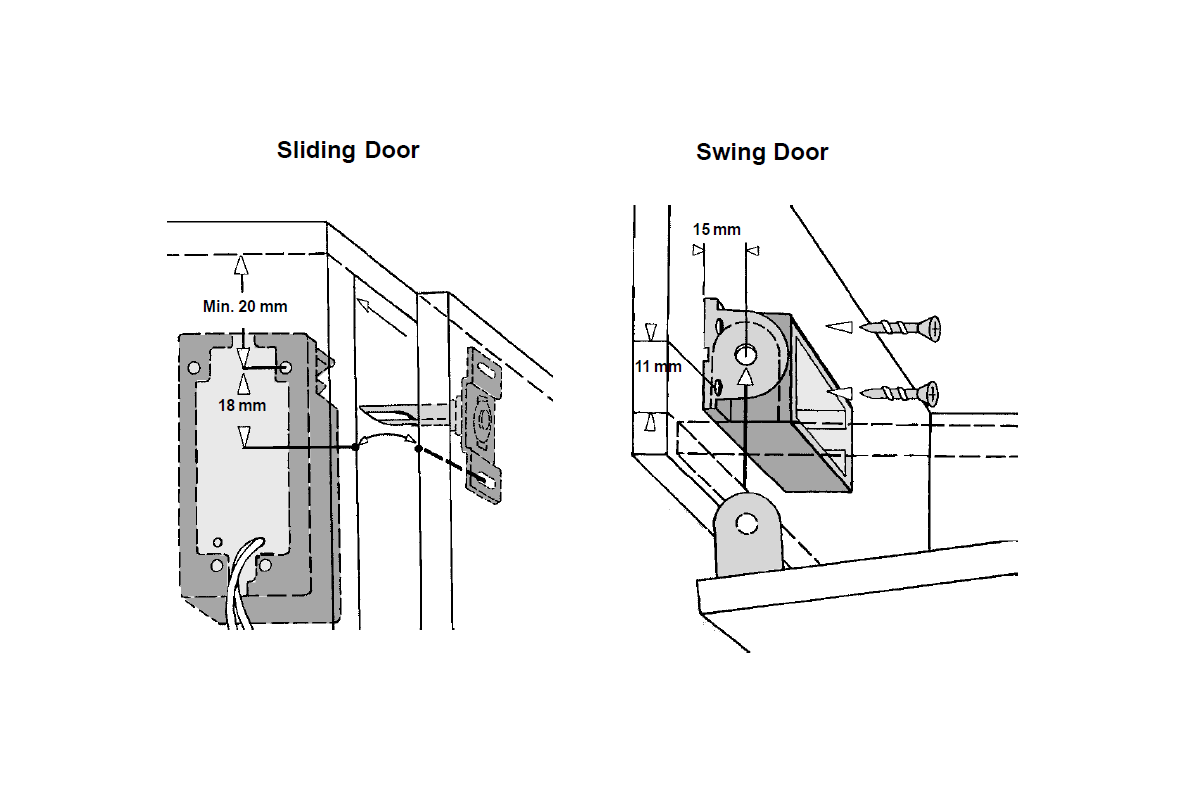

Cabinet locking for either swing or sliding cabinet doors
