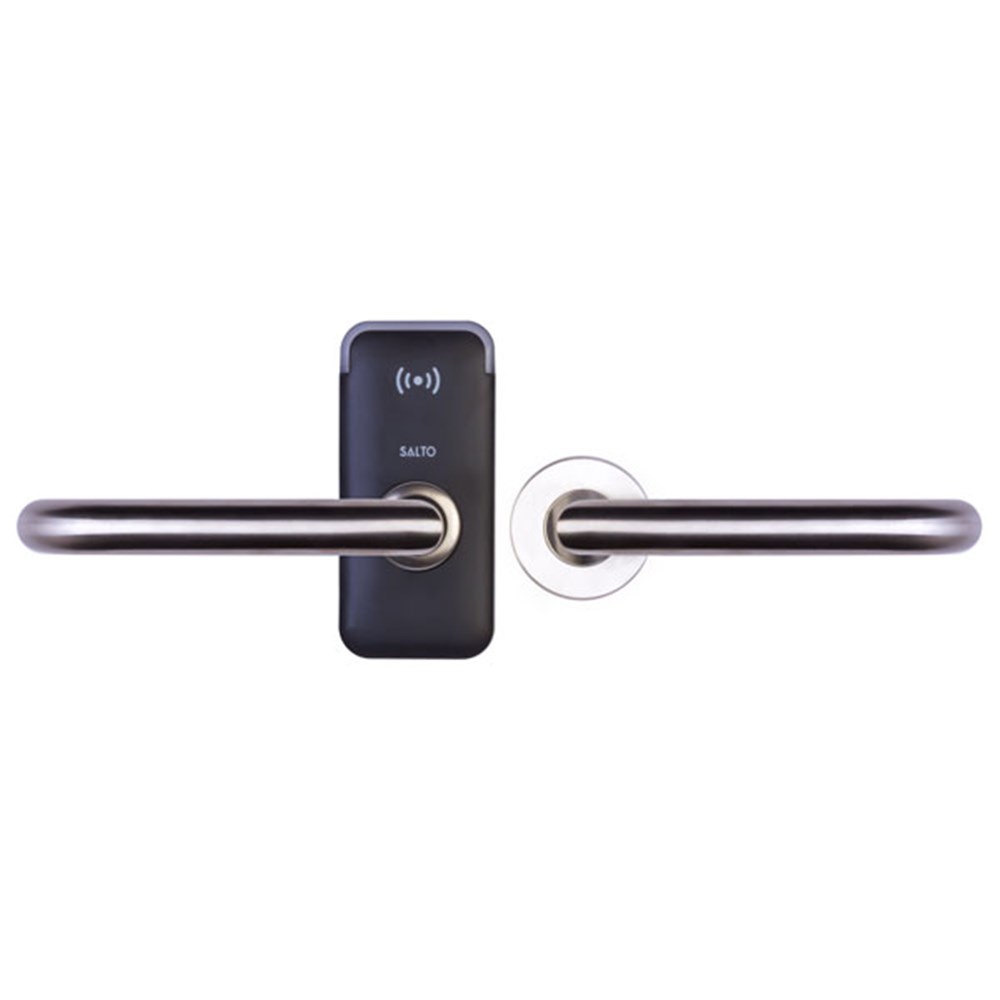

SALTO XS4 One BLE Australian Mini

Description

Note – Product listing for IM stainless finish lever, black reader with Z lever. Australian mortice sold separately. For other levers and finishes please contact us for pricing.

Main Features

• Simple installation using just two screws when installing in combination with Australian mortise locks.
• Clear, dual colour optical signalling indicates access authorisation. Acoustic signal optional.
• High security via high resistance, hardened anti-drill protection.
• Concealed fixing screws for greater security and improved aesthetics.
• For indoor applications: quick and easy install makes it ideal for retrofits.
• Wide range of handles, configurations and door retrofit cover plates to meet the installation needs.



Technical Characteristics

• Covers door thicknesses: From 35mm up to 90mm.
• Dimensions: 127mm x 58,5mm x 22,5mm.
• Reversible handle, left or right electronic lock.
• Clutch mechanism escutcheon; when unlocked handle moves freely.
• Handle rotation: 45º.
• Initial max. 4º pre-turn. SALTO recommends the use of a mortise lock with a maximum 4º pre-turn.
• Compatible with Australian mortise locks.
• Handle compatibility: 16mm Ø.
• Square spindles available: 7,6mm split and 8mm.



Platforms

• SALTO Virtual Network (SVN) data-on-card
• JustIN Mobile: Bluetooth SMART (BLE)



ID Technologies

• MIFARE Plus, DESFire EV1, Ultralight C
• Bluetooth SMART (BLE)
• NFC.



Certifications

    .



Reader Colours



Finishes
