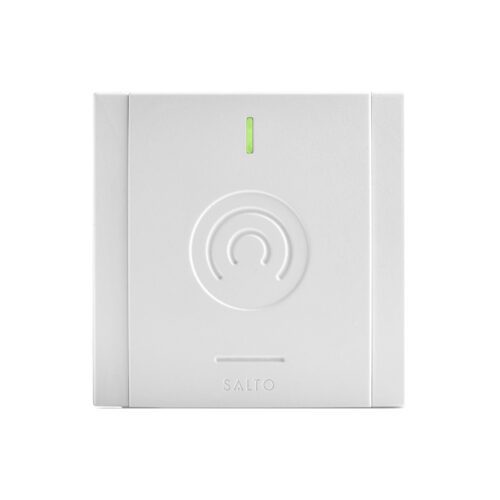

The SALTO XS4 Bluenet Node. Wireless node Kit. Kit to expand range to wireless escutcheons. Need to be connected to one GATEWAY2 or GATEWAY3 by 485 bus connection. Power by the GATEWAY.
The SALTO – Wireless-Node 3 BLUEnet – RFNODE3 is a bridge between ProAccess Space Software and compatible BLE Bluenet battery locks.
Up to 16 SALTO BLUEnet compatible access points can be connected to an RFNode3. All communication with the RFNode3 is AES 128-bit encrypted. Firmware update via SALTO ProAccess SPACE software via gateway and Ethernet connection.
Requires Space SW version 4.1 and above.
Requires Space add on option Wireless Blue 0033. One licence required per door.
Main Features
Wireless radio frequency based on IEEE 802.15.4 at 2,4Ghz (Bluetooh Low Energy)
AES 128 bits encryption
One gateway can manage up to 7 nodes (1 internal 6 external nodes)
One BLUEnet node manages up to 16 BLUEnet electronic locks
Range of 10-15 meters (30-35 ft)
compatible with SALTO BLUEnet wireless network
Connection to the GATEWAY02 or GATEWAY03 by BUS 485
powered by the GATEWAY
can manage up to 16 wireless locks
Firmware update via software through Ethernet connection
Important notes
The first node must be connected to the gateway. Another node can be connected to each node (max. 6 units).
SALTO XS4 Bluenet Node
$154.04 incl gst
Description
The SALTO XS4 Bluenet Node. Wireless node Kit. Kit to expand range to wireless escutcheons. Need to be connected to one GATEWAY2 or GATEWAY3 by 485 bus connection. Power by the GATEWAY.
The SALTO – Wireless-Node 3 BLUEnet – RFNODE3 is a bridge between ProAccess Space Software and compatible BLE Bluenet battery locks.
Up to 16 SALTO BLUEnet compatible access points can be connected to an RFNode3. All communication with the RFNode3 is AES 128-bit encrypted. Firmware update via SALTO ProAccess SPACE software via gateway and Ethernet connection.
Requires Space SW version 4.1 and above.
Requires Space add on option Wireless Blue 0033. One licence required per door.
Main Features
Important notes
The first node must be connected to the gateway. Another node can be connected to each node (max. 6 units).
