Note: Product listing for black reader in IM stainless finish only – contact us for pricing on other finishes

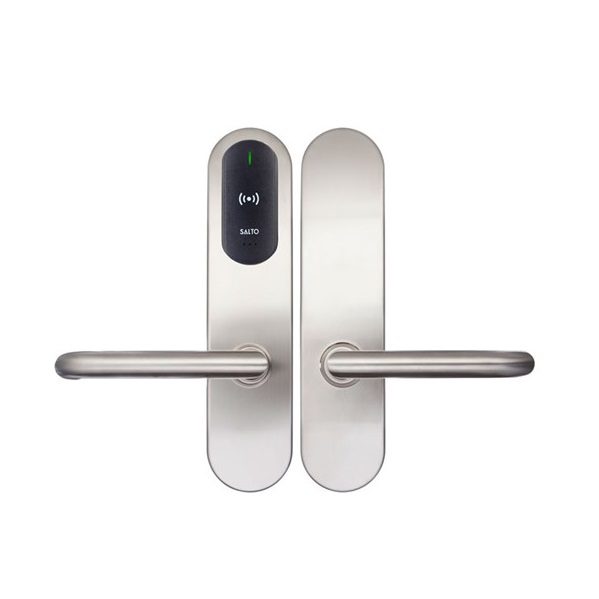

The SALTO XS4 Original+ is designed to fit most ANSI profile doors, mortise, cylindrical and tubular locks. Easy to install and retrofit, it can replace your existing door hardware and fits any door with a broad range of different models and functions. The XS4 Original+ incorporates the latest BLUEnet wireless and mobile credentials technology to accommodate access control needs of both today and tomorrow.
Main Features
Simple installation is possible on any type of door, including those with narrow frames.
Body and escutcheon made of steel.
Available with mechanical cylinder cut outs for key override or access lock outs (override Mortise cylinders).
Mechanical or electronic privacy option.
The lock can always be opened from the inside (single action panic feature works in conjunction with the SALTO LA1T15 series mortise lock).
Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.
Technical Characteristics
Covers door thicknesses: 45mm-60mm
Dimensions: 290 x 67 x 20mm (HxWxD)
Reversible handle left or right escutcheon.
Clutch mechanism escutcheon; when unlocked handle moves freely.
Handle rotation: 52º.
Compatible with ANSI standard cylindrical and mortise locks.
Square spindles available: 8mm and 7,6mm split.
Platforms
SALTO Space
SVN Data-on-card
Wireless (SALTO BLUEnet)
SVN-FLEX
SALTO KS
Wireless (SALTO BLUEnet)
Credential Technologies
SALTO Justin Mobile Credentials: Mobile Key Bluetooth and Near Field Communication (NFC) capability.
SALTO XS4 BLE Original Escutcheon
$1093.00 – $1145.00 incl gst
Description
SALTO XS4 BLE Original Eschutcheon
Note: Product listing for black reader in IM stainless finish only – contact us for pricing on other finishes
The SALTO XS4 Original+ is designed to fit most ANSI profile doors, mortise, cylindrical and tubular locks. Easy to install and retrofit, it can replace your existing door hardware and fits any door with a broad range of different models and functions. The XS4 Original+ incorporates the latest BLUEnet wireless and mobile credentials technology to accommodate access control needs of both today and tomorrow.
Main Features
Technical Characteristics
Platforms
Credential Technologies
Certifications
Reader Colours
Finishes
