Description

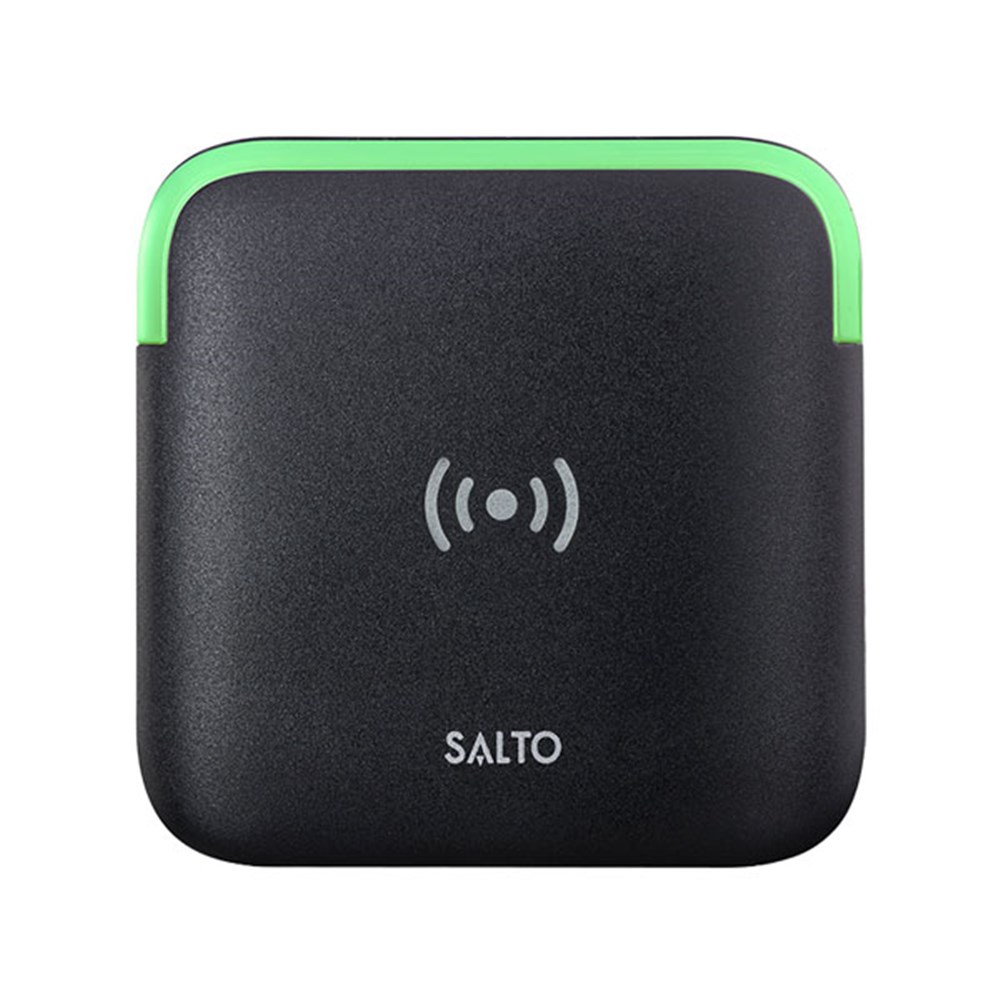

SALTO XS BLE Wall Reader

The SALTO XS BLE Wall Reader incorporates the cutting-edge design standard of the XS4 2.0 product range in this technological powerhouse. In combination with the SALTO Controller, it facilitates the integration of the wall reader with almost any SALTO interface such as SALTO ProAccess SPACE, to provide your facility with a complete security solution.

Wall Reader Main Features

Modern aesthetic design with green/red and blue clear LED colour optical signal.
Conical or flat square shape with rounded corners.
Compatible with standard European electric boxes.
Fully integrated with the SALTO XS4 platform.
Virtual network capable through SALTO SVN data-on-card technology.
Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
Available for surface mounting.
Concealed fixing screws for greater security and improved aesthetics.

Wall Reader Technical Characteristics

Specially designed to fit European standard electric boxes, making the installation quick and easy.
To be used in combination with XS4 2.0 controllers (CU42xxx) or SALTO KS controllers (CU41xxx).
Connection to the door controller: 4 wires.
Designed to work with an online SVN access control platform, or with a stand-alone system.
Maximum distance the door controller and the wall reader 400m1 using a twisted pair cable.
Includes tamper to monitor if the wall reader has been opened.
Reading distance from 35 to 50mm depending on the RFID technology.
