Description

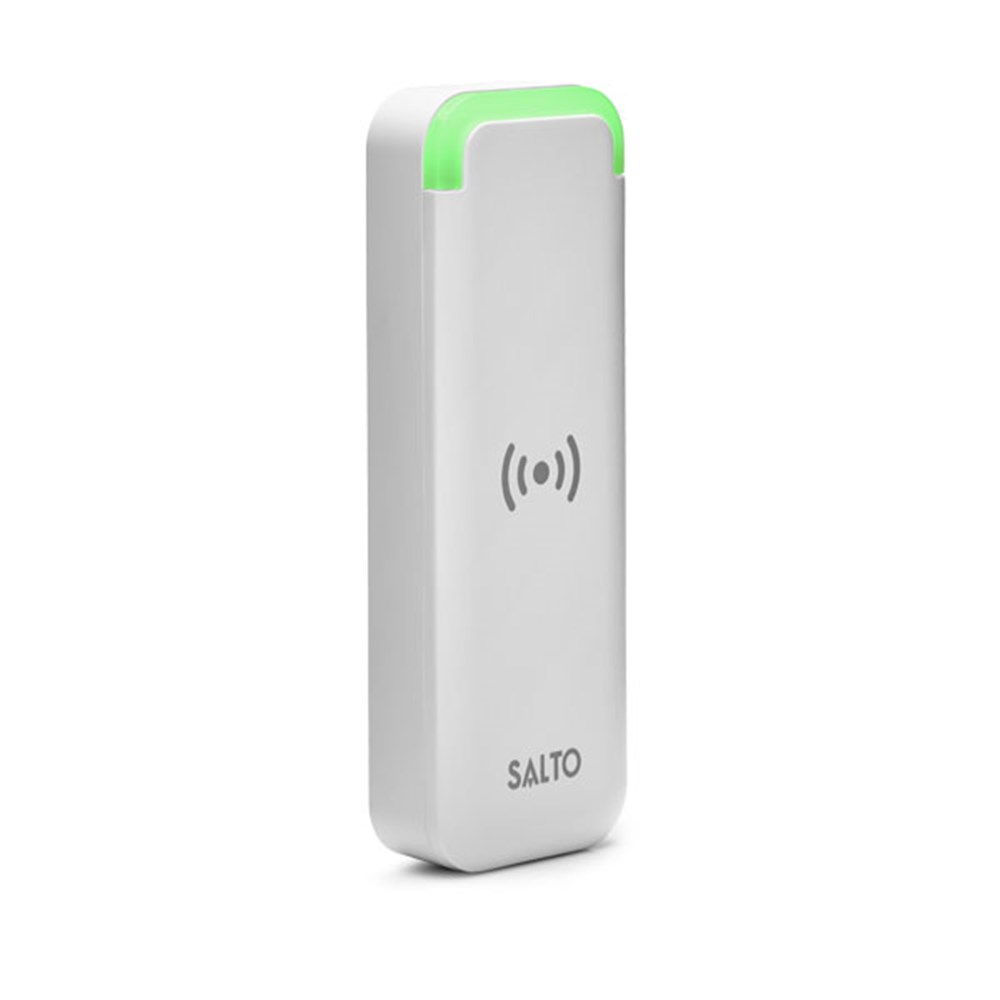

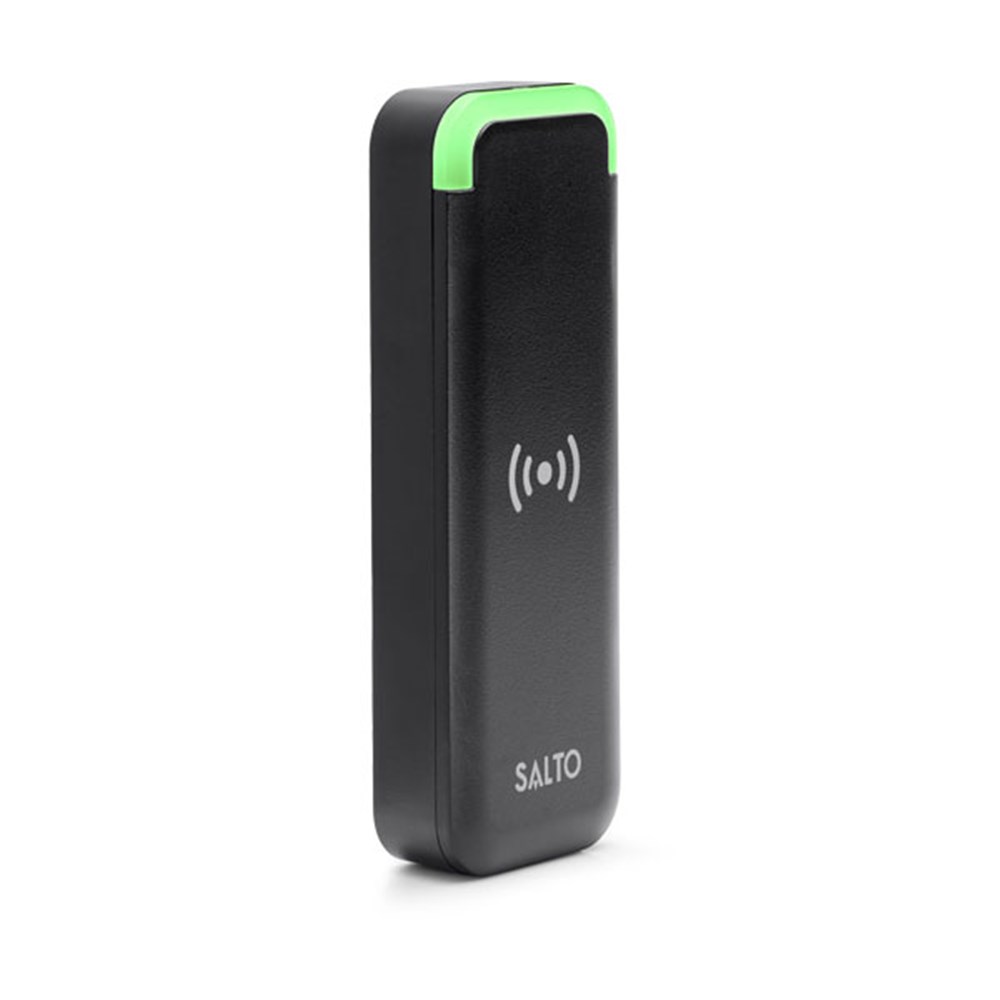

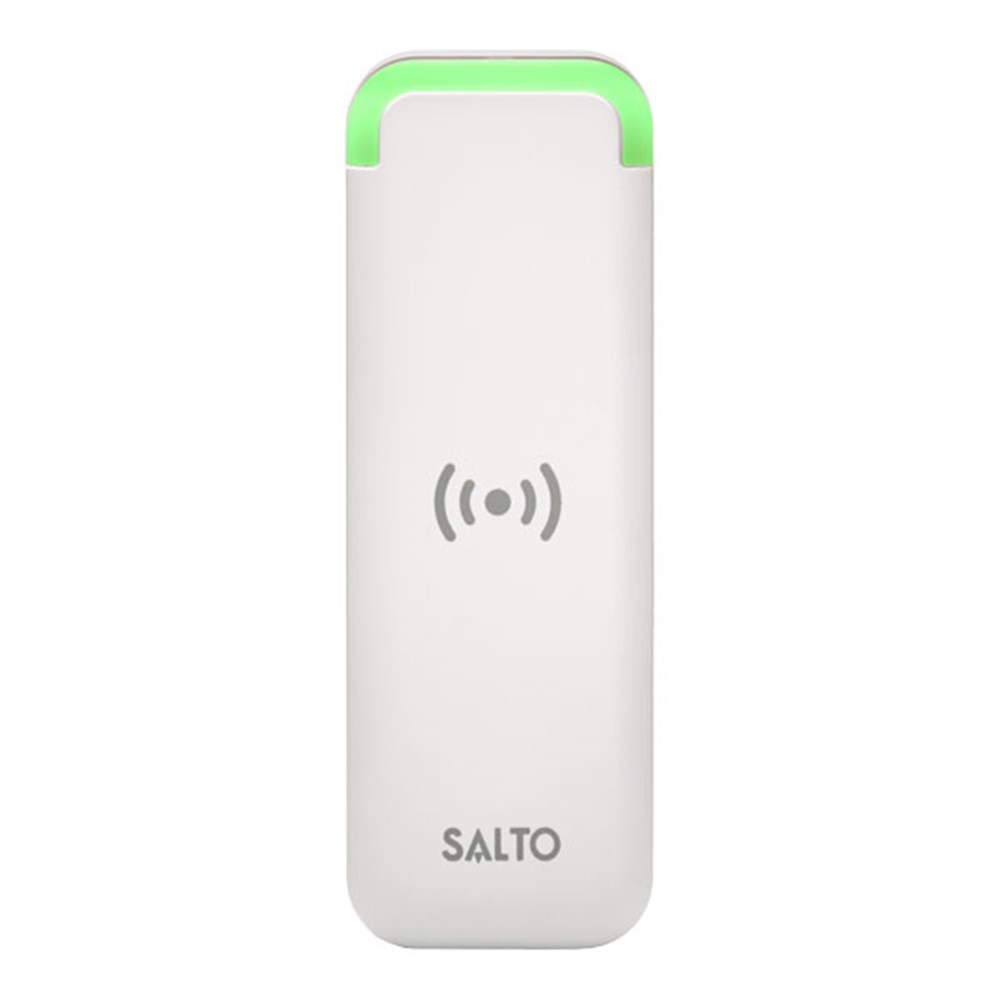

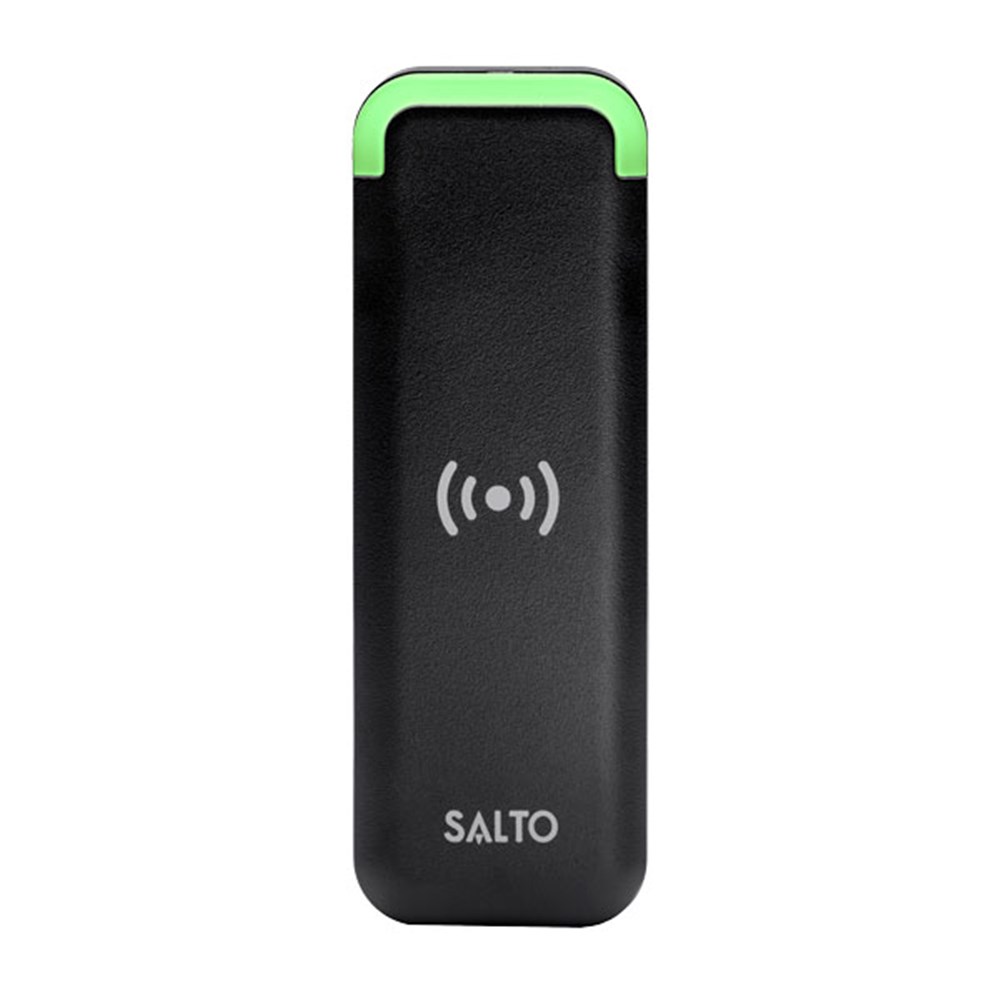

SALTO XS BLE Mullion Reader

The SALTO XS Mullion Readers are perfect to be fitted on narrow profile surfaces. Compatible with the CU42xxx range of controllers.



Main Features

• Compact slim reader module design reader.
• Specially designed for narrow or aluminium profile doors, making the installation quick and easy with minimal impact.
• Reader is housed in a two-piece, weatherproof secure electronics potted enclosure.
• Fully integrated with the SALTO XS4 platform.
• Virtual network capable through SALTO SVN data-on-card technology.
• Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
• Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
• For surface mounting.
• Concealed fixing screws for greater security and improved aesthetics.



Technical Characteristics

• To be used in combination with XS4 2.0 controllers (CU42xxx).
• Maximum distance between the door controller and the wall reader 400m using a twisted pair cable.
• Connection to the door controller: 4 wires.
• Designed to work with an online SVN access control platform, or with a stand-alone system.
• Includes tamper to monitor if the wall reader has been opened.
• Reading distance from 35 to 50mm depending on the RFID technology.



Opening Modes

• Opening through key card or smartphone.



Platforms

• SALTO SPACE – Salto Virtual Network (SVN) data-on-card
• SALTO KS – Salto Cloud
• JustIN Mobile: Bluetooth SMART (BLE)



ID Technologies

• MIFARE Plus, DESFire EV1, Ultralight C
• Bluetooth SMART (BLE)
• NFC.
