The OneTop ES2012 is a heavy-duty, weather-resistant commercial electric strike explicitly engineered to withstand harsh environmental conditions. Certified with an impressive IP56 water and dust resistance rating, this robust centerline strike is the ideal choice for exposed outdoor pedestrian gates, external facility doors, and high-traffic commercial perimeters across New Zealand. Its durable construction delivers a robust 750kg holding force to handle extreme physical use while integrating seamlessly with local access control networks.
A major design benefit of the ES2012 is its patented on-site configuration capability. Installers can seamlessly convert the lock between Fail-Safe (Power-to-Lock) and Fail-Secure (Power-to-Open) operations on-site without removing the strike body from the frame. This removes the risk of loose internal pins or complex mechanical disassembly, saving valuable time on commercial retrofits.
Available directly online from Beveridge Locksmiths, you can secure this heavy-duty strike today or schedule an expert commercial technician from our mobile service fleet for certified installation across Wellington, Lower Hutt, and the wider region.
Key Features
IP56 Weather-Resistant: Certified dust and water ingress protection, perfectly suited for unshielded external doors and gate posts.
Field-Interchangeable Modes: Instantly switch between Fail-Safe and Fail-Secure operations via a patented external screw cap configuration.
750kg Holding Force: Heavy-duty commercial casing provides up to 750kg (1500 lbs) of robust static strength resistance.
Dual-Voltage Operational Flex: Supports both 12VDC and 24VDC configurations to suit different access control power loops.
Superior Impact Durability: Tested to absorb up to 200J of dynamic impact energy with an expected lifespan of over 1 million operational cycles.
Premium Stainless Construction: Outfitted with a brushed stainless steel faceplate, a matching stainless steel keeper, and an anti-corrosion plated housing.
Technical Specifications
Physical Dimensions: 123.7mm L x 43mm W x 35mm D (Standard ANSI Short Configuration)
Operating Current Profile: Consumes only 200mA @ 12VDC / 100mA @ 24VDC (+/- 10%)
Latch Acceptance: Accommodates standard cylindrical locksets and mortice latch bolts with up to a 15.9mm (5/8″) throw
Salt-Spray Testing: Passed rigorous 96-hour anti-corrosion salt spray testing for coastal environmental durability
Product Options Compatibility: Fully compatible with OneTop 15mm and 25mm lip extension plates for deep timber or wide aluminum frames
Compliance Certifications: Fully certified under CE, RoHS, and premium commercial architectural structural benchmarks
EXPERT LOCKSMITH RETROFIT NOTE: The low-current power profile of the OneTop ES2012 (drawing a highly efficient 200mA at 12VDC) makes it an absolute dream for modern 2-wire video intercom retrofits. Because it draws significantly less than the standard 500mA threshold, it can be powered directly from the gate-station terminals of modern electronic intercom kits (such as the Hikvision DS-KIS708EY) without requiring external lock power supplies or complex isolation relay loops at the fence line.

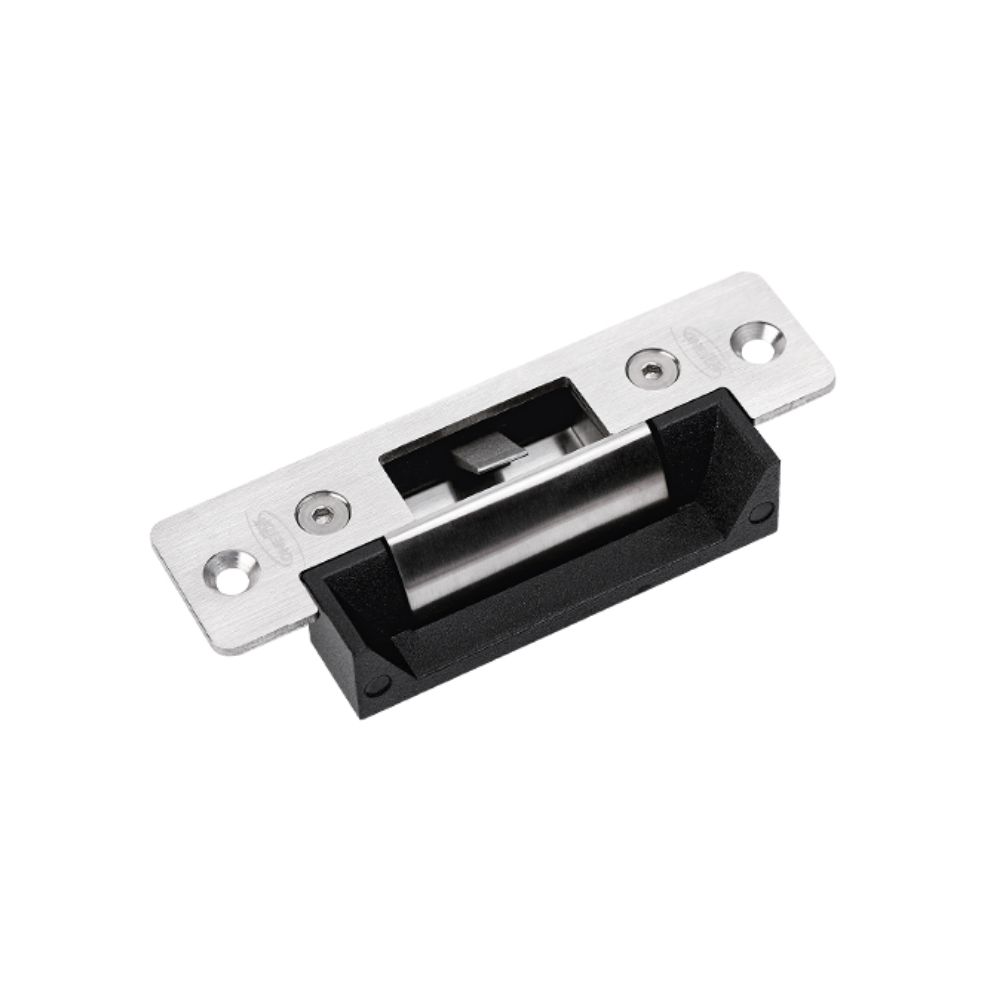

OneTop ES2012 Weather-Resistant Heavy-Duty Electric Strike
$189.00 incl gst
Description
The OneTop ES2012 is a heavy-duty, weather-resistant commercial electric strike explicitly engineered to withstand harsh environmental conditions. Certified with an impressive IP56 water and dust resistance rating, this robust centerline strike is the ideal choice for exposed outdoor pedestrian gates, external facility doors, and high-traffic commercial perimeters across New Zealand. Its durable construction delivers a robust 750kg holding force to handle extreme physical use while integrating seamlessly with local access control networks.
A major design benefit of the ES2012 is its patented on-site configuration capability. Installers can seamlessly convert the lock between Fail-Safe (Power-to-Lock) and Fail-Secure (Power-to-Open) operations on-site without removing the strike body from the frame. This removes the risk of loose internal pins or complex mechanical disassembly, saving valuable time on commercial retrofits.
Available directly online from Beveridge Locksmiths, you can secure this heavy-duty strike today or schedule an expert commercial technician from our mobile service fleet for certified installation across Wellington, Lower Hutt, and the wider region.
Key Features
Technical Specifications
EXPERT LOCKSMITH RETROFIT NOTE: The low-current power profile of the OneTop ES2012 (drawing a highly efficient 200mA at 12VDC) makes it an absolute dream for modern 2-wire video intercom retrofits. Because it draws significantly less than the standard 500mA threshold, it can be powered directly from the gate-station terminals of modern electronic intercom kits (such as the Hikvision DS-KIS708EY) without requiring external lock power supplies or complex isolation relay loops at the fence line.
