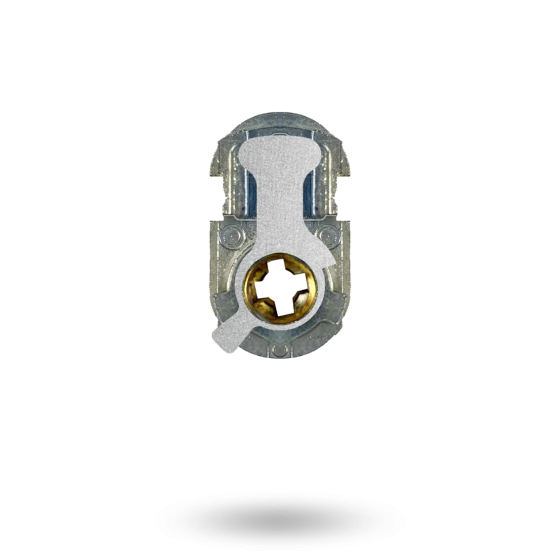

Lockwood Anti-Vandal Turn Adaptor

The Lockwood Synergy® turnsnib adaptor is suitable for use with Lockwood Synergy® series mortice locks where a locking function is required of the turnsnib.

Features

• Anti-vandal turn adaptor
• Adaptor allows latch to be retracted by key when handles are rendered inoperable
• Locks and unlock locking bar
• Applicable to the 3570 Series and 3580 series locks in classroom and office locking/latching configurations
• Suitable for use with turnsnib or plate furniture
• Used with a M cam (upside down W cam)
• Right handed operation
• Supplied in trade pack

Adaptor Installation
Establish which side the adaptor is to be located and lever out black cylinder hole plug where fitted.
Place the lock into the locked position.
Insert the Lockwood Synergy® adaptor into lock body with top of turn knob cam pointing away from the front
of the lock body. Ensure turn knob cam is engaged in the yoke of snib.
Place the retainer pin through front plate to retain the adaptor to lock. Ensure the pin is flush with front plate.
