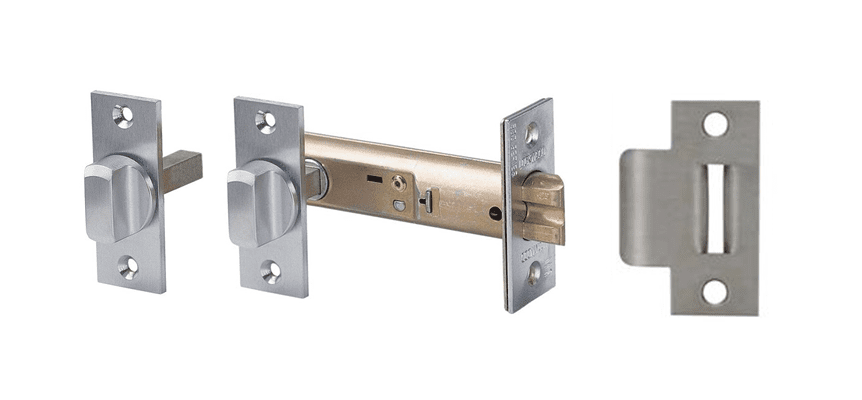

The Lockwood 60mm Backset Pool Access Kit (L530-12SC & LSP8530-57SC) combines a Lockwood 60mm backset tubular deadlatch with two solid brass turn knobs, giving a self-latching door with a hand release on both sides. It is intended for swinging timber doors, 35mm to 45mm thick, leading out to pool areas where the latch needs to be fitted above 1500mm.
The deadlatch engages by itself as the door closes, and the turn knobs release it by hand. Fitted high on the door, it keeps the release out of reach of young children while staying easy for adults to use from either side.
Hardware Applications & Features
The kit is made up of one tubular deadlatch and two turn knobs that work together as a self-latching release:
➔ Self-Latching Tubular Deadlatch: The 60mm backset tubular deadlatch engages automatically as the door closes, for single-action (one-way swing) doors. Its deadlatching action stops the bolt being pushed back once the door is closed.
➔ Release From Both Sides: Includes two turn knobs, one for each side of the door, so the latch can be released by hand from either side once fitted.
➔ Fits Above 1500mm: Designed to be mounted high on the door so the release sits at least 1500mm above the floor, as F9/AS1 requires for pool door self-latching devices.
➔ Solid Brass Turns: Two solid brass turn knobs in a satin chrome finish, with a brass latch bolt in the deadlatch.
➔ Doors 35–45mm Thick: Suits timber doors from 35mm to 45mm thick, with a 60mm backset.
➔ Rebated Double Doors: The MC307 rebate kit is compatible and available as a separate item for double rebated doors.
Technical Architectural Parameters
Hardware Metric
Verified Component Dimension / Spec
Product Range
Lockwood 530 Series tubular deadlatch with Lockwood 8530 series turn knobs.
Model / SKU
L530-12SC & LSP8530-57SC.
Kit Contents
1 No. L530-12SC 60mm backset tubular deadlatch (strike and screws included) and 2 No. LSP8530-57SC solid brass turn knobs.
Latch Type
Tubular deadlatch, self-latching.
Operation
Hand-operated turn knob on each side of the door.
Backset
60mm.
Door Thickness
35mm – 45mm.
Latch Bolt
Brass, 13mm projection.
Latch Face Plate
57mm x 25mm.
Strike Plate
70mm x 28.5mm x 1.2mm.
Turn Knob Material
Solid brass.
Spindle Size
7.6mm square.
Finish
Satin chrome.
Mounting Height
Release at least 1500mm above the inside floor (F9/AS1 pool door requirement).
Rebated Doors
MC307 rebate kit (separate item) for double rebated doors.
Pool Door Compliance & Fitting
For a pool barrier door, F9/AS1 requires a self-latching device that engages automatically on closing and is released by hand, with the release at least 1500mm above the inside floor. The door also needs either a self-closing device or an audible door alarm, which are sold separately.
This kit supplies the self-latch and high-mounted release only. Overall barrier compliance is assessed by your Building Consent Authority or pool inspector, so please confirm the full door and barrier design with them.
Lockwood 60mm Backset Pool Access Kit
$335.00 incl gst
Description
The Lockwood 60mm Backset Pool Access Kit (L530-12SC & LSP8530-57SC) combines a Lockwood 60mm backset tubular deadlatch with two solid brass turn knobs, giving a self-latching door with a hand release on both sides. It is intended for swinging timber doors, 35mm to 45mm thick, leading out to pool areas where the latch needs to be fitted above 1500mm.
The deadlatch engages by itself as the door closes, and the turn knobs release it by hand. Fitted high on the door, it keeps the release out of reach of young children while staying easy for adults to use from either side.
Hardware Applications & Features
The kit is made up of one tubular deadlatch and two turn knobs that work together as a self-latching release:
➔ Self-Latching Tubular Deadlatch: The 60mm backset tubular deadlatch engages automatically as the door closes, for single-action (one-way swing) doors. Its deadlatching action stops the bolt being pushed back once the door is closed.
➔ Release From Both Sides: Includes two turn knobs, one for each side of the door, so the latch can be released by hand from either side once fitted.
➔ Fits Above 1500mm: Designed to be mounted high on the door so the release sits at least 1500mm above the floor, as F9/AS1 requires for pool door self-latching devices.
➔ Solid Brass Turns: Two solid brass turn knobs in a satin chrome finish, with a brass latch bolt in the deadlatch.
➔ Doors 35–45mm Thick: Suits timber doors from 35mm to 45mm thick, with a 60mm backset.
➔ Rebated Double Doors: The MC307 rebate kit is compatible and available as a separate item for double rebated doors.
Technical Architectural Parameters
Pool Door Compliance & Fitting
For a pool barrier door, F9/AS1 requires a self-latching device that engages automatically on closing and is released by hand, with the release at least 1500mm above the inside floor. The door also needs either a self-closing device or an audible door alarm, which are sold separately.
This kit supplies the self-latch and high-mounted release only. Overall barrier compliance is assessed by your Building Consent Authority or pool inspector, so please confirm the full door and barrier design with them.
