Description

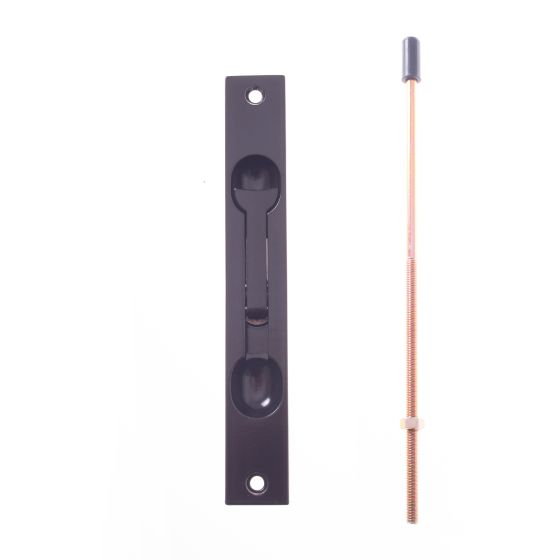

Yale P3512B Flush Bolt

The Yale flush bolt range is used for safe bolting of aluminium doors and windows. The 7mm diameter plated steel rod provides high security and is activated by a strongly constructed die-cast zinc body and operating lever with comfortable finger grip.

Features

• The flush bolts are supplied as standard with a 300mm rod threaded for 150mm along its length, enabling the rod to be factory trimmed to suit varying window/ door sizes.
• A rod guide is supplied for fitting inside the door/window frame.
• Standard nylon tip included

Suitability

The surface mounted model with a standard width faceplate is suitable for doors and can be mounted either on the face or the leading edge of the stile.
Suitable for use on aluminium doors and windows.

Fixing Surfaces
Metal

Finish
Black powder coat
