The Windsor York Lever Handle Set (3006 Series) is a solid brass lever-on-longplate range available in four functions — Passage, Euro 48 Locking, Lever Locking (Skeleton Key), and Privacy — to suit everything from free-swinging internal doors to key-locked entrances and bathroom doors.
Finished in Satin Chrome or Polished Brass, each function is designed to pair with its matching Windsor lock or latch body (sold separately — see compatibility below), and the range is backed by Windsor’s 15-year mechanical warranty.
Hardware Applications & Features
The Windsor York range is engineered to cover the full spread of internal and entrance door functions from a single, matching lever design:
➔ Passage (3006): Free-turning lever both sides, no lock — designed to pair with a Windsor 1101 tubular latch (sold separately), for hallways, living areas, and wardrobes.

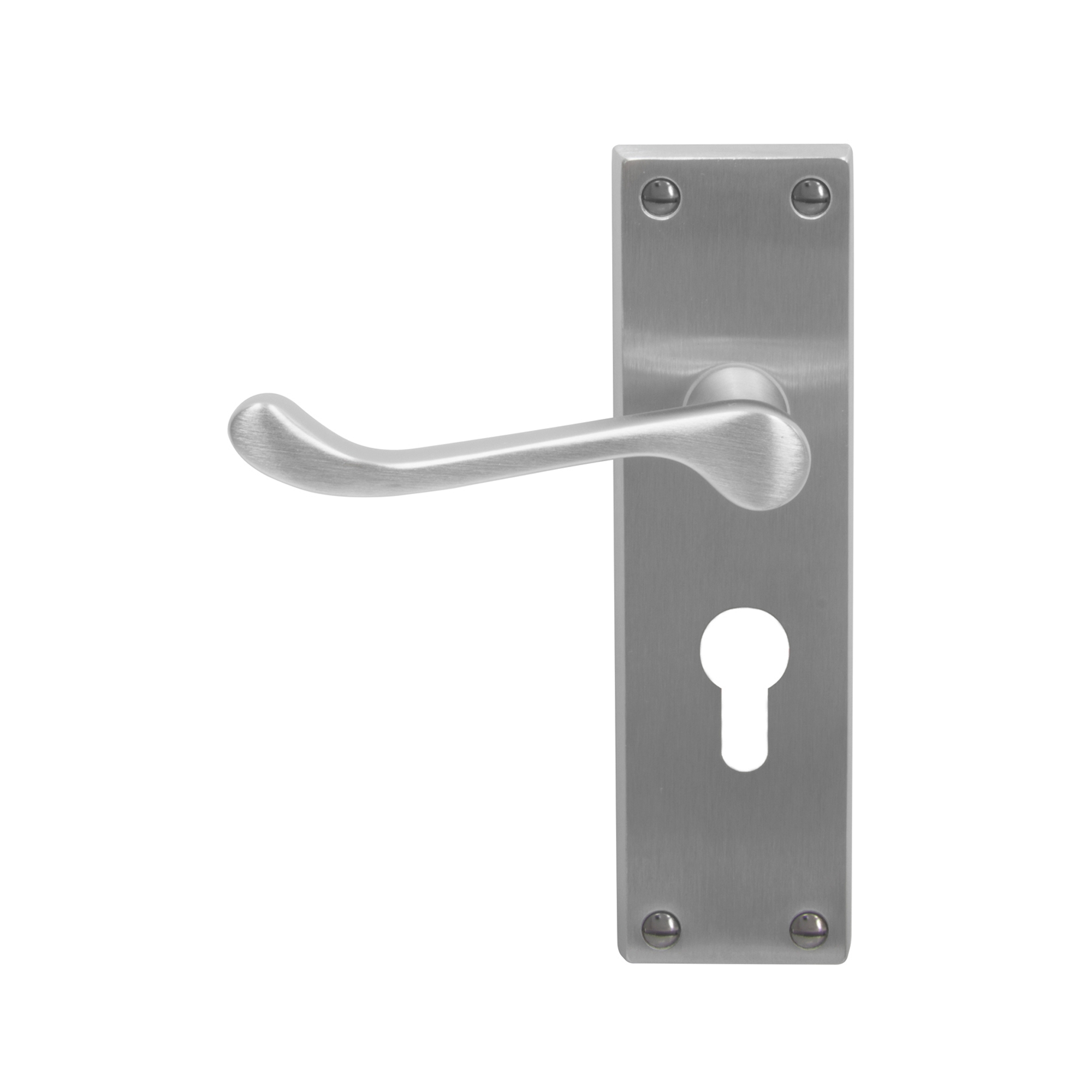

➔ Euro 48 Locking (3006-E48): Lever withdraws the latch, deadbolt locked/unlocked via Euro cylinder — designed to pair with a Windsor 1114 (45mm) or 1115 (57mm backset) Euro 48 mortice lock plus cylinder (sold separately), for entrance doors.
➔ Lever Locking / Skeleton Key (3006L): Deadbolt locked/unlocked with a traditional bit key — designed to pair with a Windsor 1107 (45mm) or 1108 (57mm backset) 3-lever mortice lock (sold separately).
➔ Privacy (3006-P57): Inside turn/snib locking with outside emergency coin release — designed to pair with a Windsor 1110 or 8055 privacy mortice lock, 57mm backset (sold separately), for bathrooms and ensuites.
➔ Solid Brass Construction: Longplate and lever handles built from solid brass for long-term durability and weight, available in Satin Chrome or Polished Brass.
Technical Architectural Parameters
Hardware Metric
Verified Component Dimension / Spec
Product Range
Windsor York 3006 Series (Lever Longplate Handle Set).
Plate Dimensions
152mm x 43mm.
Lever Length / Projection
98mm Lever Length, 54mm Projection.
Material
Solid Brass.
Function Options
Passage (3006), Euro 48 Locking (3006-E48), Lever Locking / Skeleton Key (3006L), Privacy (3006-P57).
Compatible Lock / Latch (Sold Separately)
Passage: 1101 tubular latch (70mm backset). Euro 48: 1114/1115 Euro mortice lock (45mm/57mm backset). Lever Locking: 1107/1108 3-lever mortice lock (45mm/57mm backset). Privacy: 1110 or 8055 privacy mortice lock (57mm backset).
Windsor York Lever Handle Set – Long Plate
$189.00 incl gst
Description
The Windsor York Lever Handle Set (3006 Series) is a solid brass lever-on-longplate range available in four functions — Passage, Euro 48 Locking, Lever Locking (Skeleton Key), and Privacy — to suit everything from free-swinging internal doors to key-locked entrances and bathroom doors.
Finished in Satin Chrome or Polished Brass, each function is designed to pair with its matching Windsor lock or latch body (sold separately — see compatibility below), and the range is backed by Windsor’s 15-year mechanical warranty.
Hardware Applications & Features
The Windsor York range is engineered to cover the full spread of internal and entrance door functions from a single, matching lever design:
➔ Passage (3006): Free-turning lever both sides, no lock — designed to pair with a Windsor 1101 tubular latch (sold separately), for hallways, living areas, and wardrobes.
➔ Euro 48 Locking (3006-E48): Lever withdraws the latch, deadbolt locked/unlocked via Euro cylinder — designed to pair with a Windsor 1114 (45mm) or 1115 (57mm backset) Euro 48 mortice lock plus cylinder (sold separately), for entrance doors.
➔ Lever Locking / Skeleton Key (3006L): Deadbolt locked/unlocked with a traditional bit key — designed to pair with a Windsor 1107 (45mm) or 1108 (57mm backset) 3-lever mortice lock (sold separately).
➔ Privacy (3006-P57): Inside turn/snib locking with outside emergency coin release — designed to pair with a Windsor 1110 or 8055 privacy mortice lock, 57mm backset (sold separately), for bathrooms and ensuites.
➔ Solid Brass Construction: Longplate and lever handles built from solid brass for long-term durability and weight, available in Satin Chrome or Polished Brass.
Technical Architectural Parameters
