Description

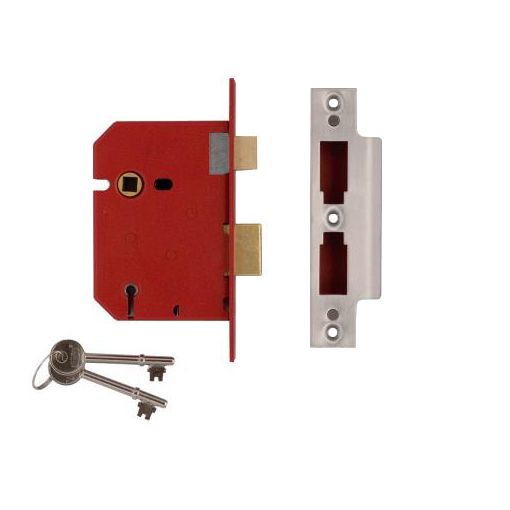

Union 5 Lever Mortice Locks

For timber doors hinged on left or right. To suit doors up to 54mm thick

Features

• Deadbolt locked or unlocked by key from either side
• Latch bolt withdrawn by lever handle from either side
• Pierced to accept bolt through furniture
• Security box striking plate
• Easily reversible latch bolt from outside of case
• Available with square forend and striking plate

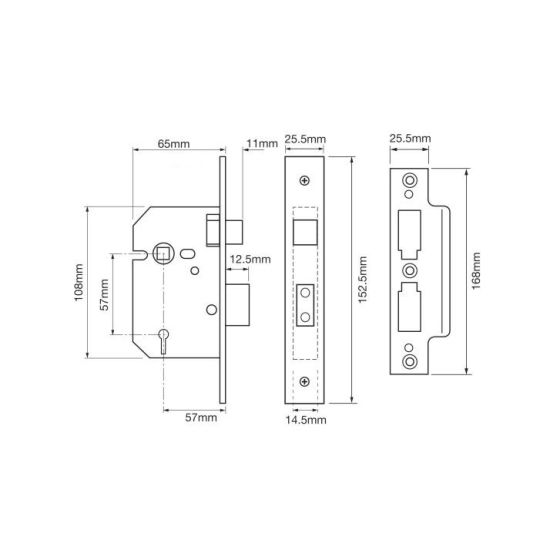

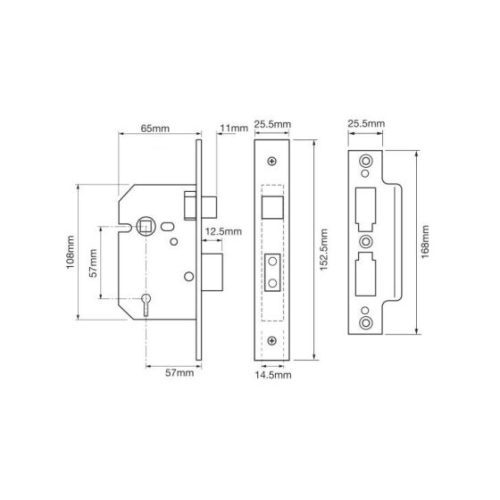

• 65mm case (44.5mm backset)
• 77.5mm case (57mm backset)
• 44.5mm & 57mm backset options
• Steel withred powder coat case
• Stainless steel forend
• Striking plate is finished to match forend
• Brass deadbolt with hardened steel rollers
• Brass latchbolt is easily reversible
• Brass 8mm square follower
• Rebate kit2989 (13, 19 or 25mm sizes)
• Supplied with 2 steel nickel plated keys
• Keying supplied to random but can be rekeyed by a qualified locksmith
• May be keyed alike with 2101 and 2401 by a qualified locksmith
• Key blank number KB430
• 600 standard differs (keys are not numbered for security purposes)

NB: Not suitable for master keying

Finish
Satin Chrome Sc
