The Double Series Electromagnetic Locks (maglocks/mag locks), operate with holding forces from 500kg up to 1160kg. Covering a range of applications these magnets are ideal for applications from access ways through to high use commercial swing doors. With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.
Features
Fail-safe: unlocks when power is removed
Easy installation: suitable for both new and retrofit usage
High holding force: refer to the technical data overleaf
Self-alignment: armature plate pivots to accommodate door drop
Silent operation: no humming or buzzing
Dual voltage: site selectable 12 or 24 VDC
Monitoring; Hall-Effect and Reed Switch monitoring on all models
Instantaneous release: smart electronics on the electromagnets eliminate residual magnetism.
Applications
Aluminium doors
Double swing doors
Access control
Surface mount for inswing and outswing doors
Monitoring
Hall / Bond Monitoring
This indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)
Reed switch monitoring
An integrated reed switch monitors the door position separately (it monitors the position of the door)
Standards and Compliance
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
CE Approved
C-Tick Certified
Z8 Magnet
Holding Force1100kg – 1160kg
Dimensions(L)532 x (H)72 x (D)40 mm
Voltage12Vdc/ 24Vdc ±10%
Current1024mA @ 12Vdc 512mA @ (12Vdc)
MonitoringHall Effect / Bond sensing and Reed Switch
Operating Temperature-10 to 55 Degrees
Operating Humidity0 – 95%
Specification Statement
The Double Series Electromagnetic Lock should be constructed in an aluminium base with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. The lock needs to be equipped with inch smart electronicsinch that have zero residual magnetism, (instantaneous release). This is crucial for correct operation.

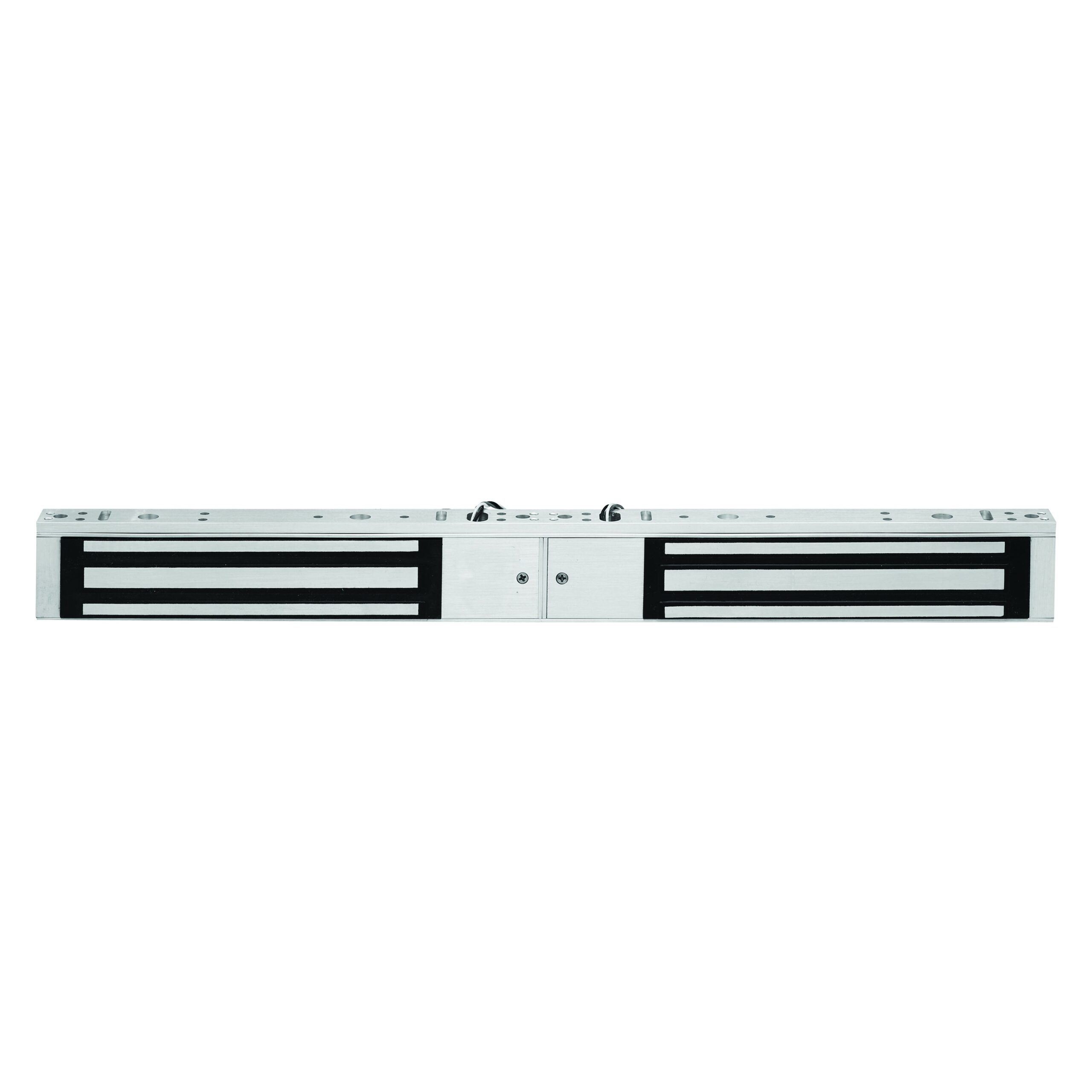

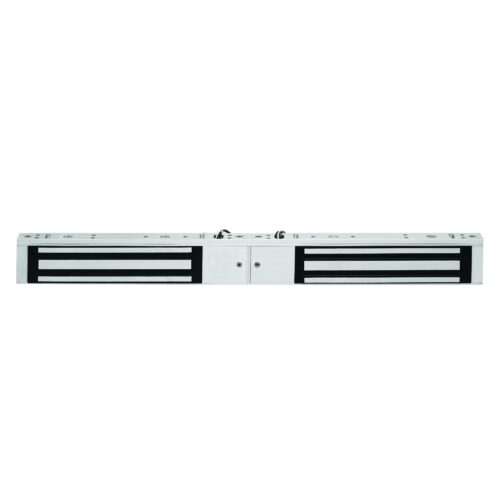

Trimec Z8 Double Mag Lock
$620.00 incl gst
Description
Trimec Z8 Double Mag Lock
The Double Series Electromagnetic Locks (maglocks/mag locks), operate with holding forces from 500kg up to 1160kg. Covering a range of applications these magnets are ideal for applications from access ways through to high use commercial swing doors. With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.
Features
Applications
Monitoring
Hall / Bond Monitoring
This indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)
Reed switch monitoring
An integrated reed switch monitors the door position separately (it monitors the position of the door)
Standards and Compliance
Z8 Magnet
Holding Force1100kg – 1160kg
Dimensions(L)532 x (H)72 x (D)40 mm
Voltage12Vdc/ 24Vdc ±10%
Current1024mA @ 12Vdc 512mA @ (12Vdc)
MonitoringHall Effect / Bond sensing and Reed Switch
Operating Temperature-10 to 55 Degrees
Operating Humidity0 – 95%
Specification Statement
The Double Series Electromagnetic Lock should be constructed in an aluminium base with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. The lock needs to be equipped with inch smart electronicsinch that have zero residual magnetism, (instantaneous release). This is crucial for correct operation.
