Description

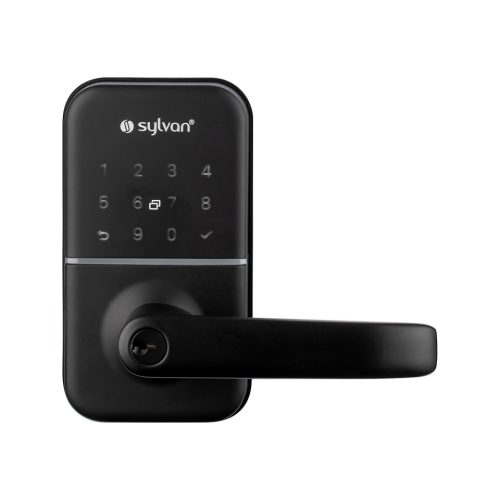

Sylvan SL43E Lever Smart Lock

Ideal for replacing an entrance leverset or knobset with a 54mm hole
Suitable for residential use on wooden and aluminium doors
This lock is supplied with a 60 to 70mm adjustable latch
Door thickness 35 to 65mm
IP55 rated
Handle is reversible – see fixing instructions for changing the handing
Not suitable for use in high sea salt and sulphur environments.
Not suitable for outward opening doors without weather protection, the inside of the lock is not waterproof only the outside of the lock is IP rated.
Data capacity: Password 150, Card 200
Battery operated 6V/4 x AA batteries – Alkaline only (batteries not included)
54mm hole in the door
Hidden C4 key override
Smart Hub – is sold separately. Smarthub enables, connection to multiple smart locks to the same device within a 10 metre range.
Finish Black

Please note – if you have the lock set to passage mode and you want to lock your door from the outside – press the # key until the lock says “locked” – the next time you enter your code it will go back into passage mode.

Batteries are not included – We recommend AA Energizer Max or AA Energizer Max Plus Alkaline batteries.

DO NOT USE: Carbon Zinc batteries like the Super Heavy Duty Eveready batteries as they are for slow draining products, and our electronic locks require high quality and high drain Alkaline batteries such as AA Energizer Max or AA Energizer Max Plus.

Download installation video

Download TT app video

Download instructions

2 Year Warranty Terms
