Description

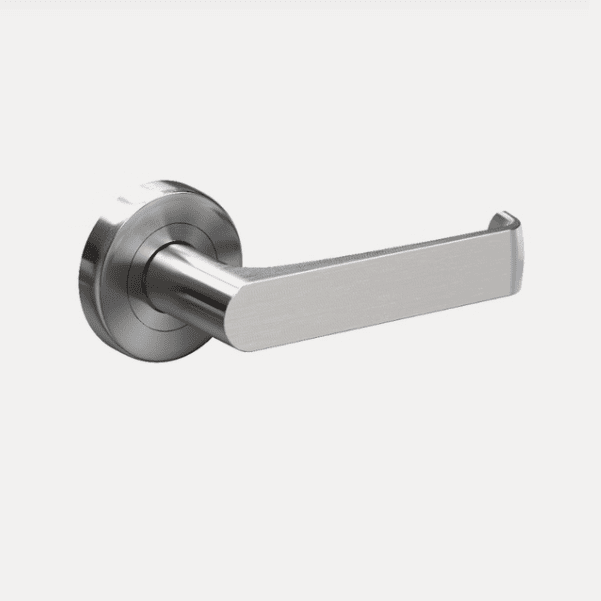

Schlage Form Telo Levers

• Available in stainless steel grade 304 handle, zinc diecast roses
• Door thickness – latch furniture 30mm to 55mm, passage set 30mm to 50mm, privacy Set 30mm to 42mm
• Fixing – bolt-through concealed fixing
• Spindle – furniture accepts 7.6mm spindle
• Handing – non-handed
• Backset – 60mm
• Functions – passage set, privacy set, dummy trim, latch furniture
• 10-year mechanical and finish warranty
• Constructed of quality components with solid stainless steel levers and outer roses (US304 grade)
• Built-in privacy push-button for quick installation and ease of use
• The Form Series is suitable for use on approved fire core door assemblies when used with fire-rated mortice locks or latches
• Through bolts provide secure fixing, concealed by a round rose cover for aesthetic appeal
• Square outer rose accessory available for all lever profiles
• Features new QuickFix™ technology – install door lever in under 30 seconds after installation of the latch and strike
• All levers are non-handed
• Can be used with Schlage tubular latches, ME series mortice locks or 990 series mortice locks
• Alpha, Costa and Telo levers are AS1428: 1-2009 compliant
• Application – For internal use
