The SALTO XS4 CU42 Controller includes important technological advances compared to earlier Controller models. One of the most significant advantages is that the 2.0 online door controller can be configured as 2 different doors, or one door reader in and reader out locking, that allows for the management of up to 10 doors from just 1 IP address using auxiliary controllers.
All door controllers enable the integration of SALTO access control with building management systems, e.g. for triggering lifts or post boxes. The online door controllers transmit data stored on the carrier to the access control software and allow for updating of the carrier via the wall reader making it possible to cancel lost or stolen cards.
Note: Offline or Auxiliary controllers can be used as either a single door offline control unit on their own or add up to 4 Auxiliary controllers to an online control unit to manage up to 10 online doors.
Main Features
Online IP based door controller.

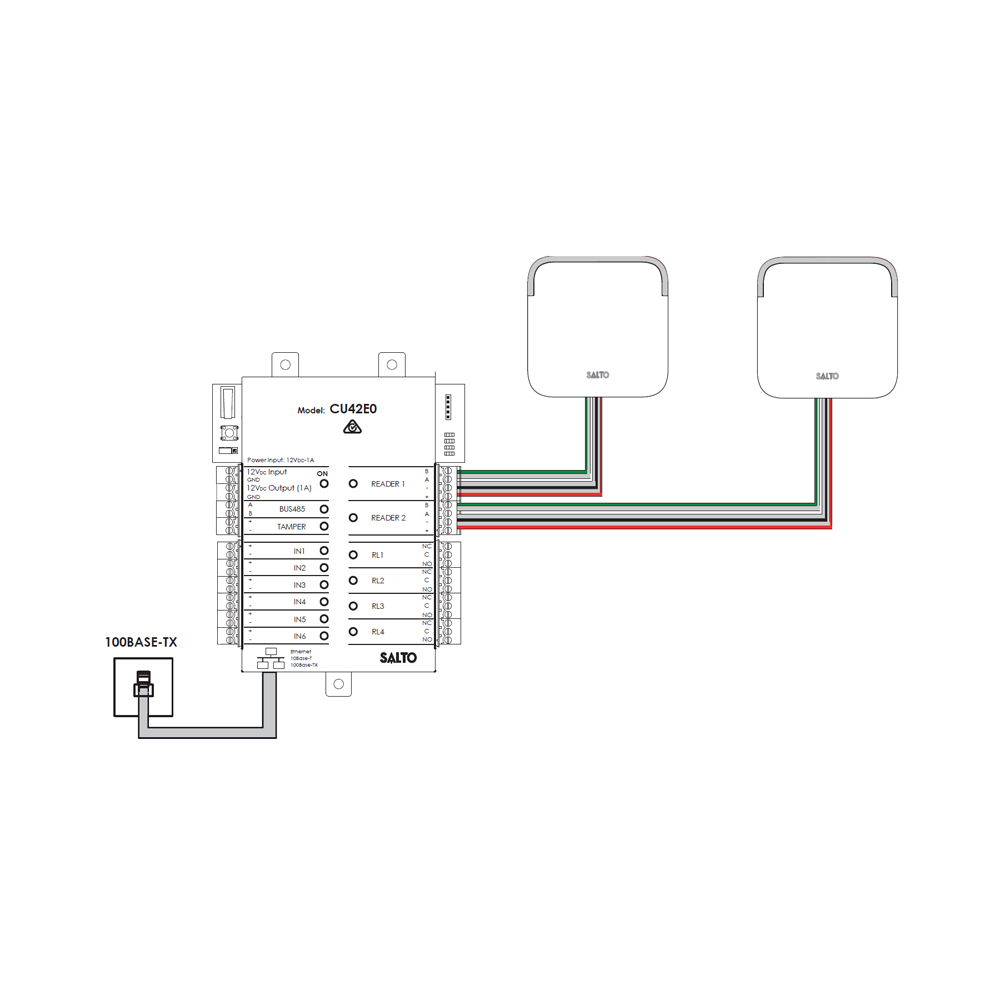

Two wall reader connection that can be configured as 2 different doors or one door reader in and reader out locking.
Antipass-back mode available by connecting 2 wall readers and set up as one door.
4 relay outputs.
6 inputs to connect to:
Door detector, request to exit switch (RTE), office switch.
2 different tampers:
One tamper input
And one tamper switch.
Door monitoring and tamper monitoring via contacts input (intrusion alarm and door left opened alarm).
To be used with all SALTO XS4 2.0 Readers (WRDxxxx, WRM90041 and WR9004FS1 series).
Virtual network capable through SALTO Virtual Network technology.
All communications between the carrier and the wall reader are encrypted and secure.
The maximum cable length between the door controller and the wall reader is up to 400 meters (Depending on the cable).
Connection to the wall reader using 4 wire connection, twisted pair.
Power consumption: 12V DC 400mA (without XS4 2.0 readers), supplied by an adaptor. POE version to be released.
Offline Auxiliary Control Units: (Can be used individually as a single door offline control unit or add up to 4 Aux controllers to a single CU42E0 online controller to increase number of doors to max of 10 doors)
SALTO XS4 CU42 Controllers
$825.73 – $1651.58 incl gst
Description
SALTO XS4 CU42 Controllers
The SALTO XS4 CU42 Controller includes important technological advances compared to earlier Controller models. One of the most significant advantages is that the 2.0 online door controller can be configured as 2 different doors, or one door reader in and reader out locking, that allows for the management of up to 10 doors from just 1 IP address using auxiliary controllers.
All door controllers enable the integration of SALTO access control with building management systems, e.g. for triggering lifts or post boxes. The online door controllers transmit data stored on the carrier to the access control software and allow for updating of the carrier via the wall reader making it possible to cancel lost or stolen cards.
Note: Offline or Auxiliary controllers can be used as either a single door offline control unit on their own or add up to 4 Auxiliary controllers to an online control unit to manage up to 10 online doors.
Main Features
Offline Auxiliary Control Units: (Can be used individually as a single door offline control unit or add up to 4 Aux controllers to a single CU42E0 online controller to increase number of doors to max of 10 doors)
Datasheet
Installation
Additional information
SALTO
6-8 week lead time
