Description

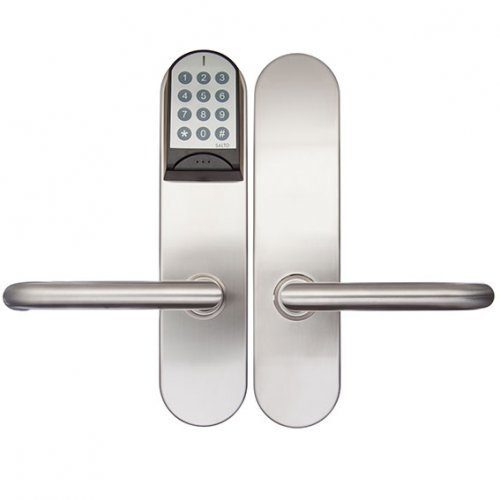

The XS4-60 wide body version for ANSI mortise locks is specially designed to be compatible with most ANSI mortise locks. It is designed for use on busy, high-traffic doors that need additional strength.

Main Features

Simple installation is possible on many types of door
Body and escutcheon made of steel
Available with mechanical cylinder cut outs for key override or access lock outs (override Mortise cylinders)
Mechanical or electronic privacy option
The lock can always be opened from the inside (single action panic feature works in conjunction with most australasian mortise locks)
Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled

Technical Characteristics

Covers door thicknesses: From 32mm up to 120 mm
Dimensions: 290mm x 67mm x 20mm
Clutch mechanism escutcheon; when unlocked handle moves freely
Reversible handle left or right escutcheon
Handle rotation: 52º
Distance from the handle to the cylinder: 61mm,
Compatible with ANSI standard cylindrical and mortise locks
Initial max. 4º pre-turn. SALTO recommends the use of a mortise lock with a maximum 4º pre-turn.
Compatible with ANSI mortise cylinders
Square spindles available: 8mm, 7mm diamond, 8mm split, 7mm diamond split and 7,6mm
