Description

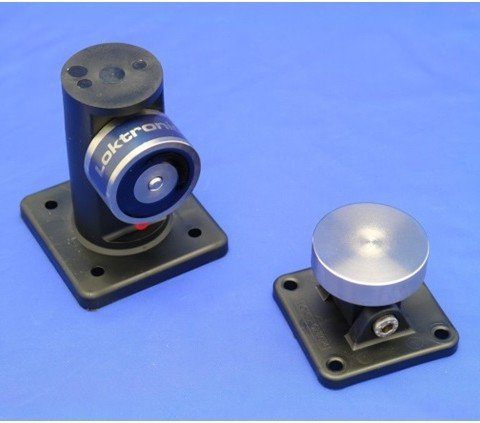

Loktronic Magnetic Hold Open

10 year guarantee
Low power consumption for lower operating temperature
Total flexibility – one product suits floor and wall mounting
Universal armature – offsets to 55 degree to suit doors opening past 90 degree
Additional flexible mounting in both planes to speed alignment
Wall mount extensions available
12 & 24 VDC selectable on PCB
Push off button means no residual magnetism
Oversize armature for easy alignment
Emergency release button
Blackened stainless steel screws for aesthetic appeal
All stainless steel fittings
Electroless nickel plated armature and electromagnet for maximum durability and easthetic appeal
Designed, tested and produced in New Zealand to AS4178
Floor mounted. Wall to door distance: 114mm.
Wall mounted. Wall to door distance: 153mm.
Power: 1.7W
Current Draw: 140mA at 12VDC
Voltage Tolerance: +/- 10%
Holding Force: 23Kg
