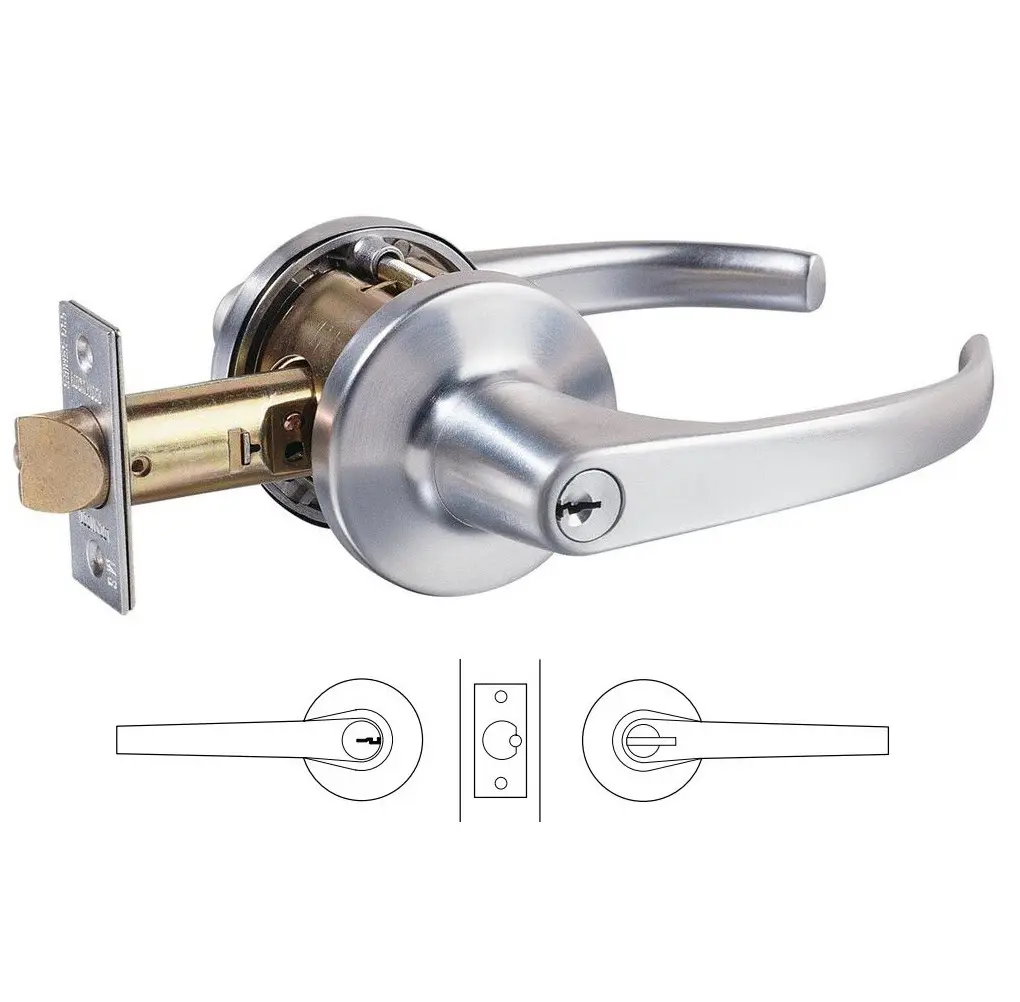

The Australian-designed Lockwood 930 Exterior Key-in-Lever Deadlatch Set offers commercial-grade performance, durability, and versatility. Specifically engineered to accommodate a vast range of architectural, commercial, and heavy-duty residential partition applications, this premium cylindrical lockset is cast from high-purity zinc alloy and finished in hard-wearing Satin Chrome (SC) to survive high-frequency operation.
As a purpose-built exterior entryway solution, the lock operates via a highly secure dual-control workflow. The outside handle remains rigid and locked until deactivated by a mechanical key or an internal turn-button release. Inserting the key smoothly locks or unlocks the exterior lever trim without directly retracting the main bolt, safeguarding the internal tracking pins against brutal handle-wrenching vandalism attempts. From the interior face, the lever handles provide an instant, single-action free egress safety escape at all times.
The Lockwood 930 Series is fully fire-tested, carrying an approved 2-hour rating on fire door assemblies in full accordance with Australian Standard AS1905.1:2005. Equipped with a standard 5-pin pin tumbler mechanism featuring a solid brass cylinder housing and brass barrel assembly, it natively supports complex institutional restricted master key matrices, maison keying configurations, and multi-level mechanical access control networks.
Key Product Features
2-Hour Fire Rating: Successfully certified under AS1905.1:2005 for deployment on structural commercial fire resistant door sets.
Zinc Alloy Construction: Lever handles and matching rose trims are manufactured from dense, high-purity zinc alloy for ultimate structural rigidity.
High-Security Projection: Employs a standard commercial deadlatch configuration with a 13mm projection solid brass latch bolt.
Non-Handed Architecture: Completely reversible field design ensures rapid, easy installation on both left and right-handed door swings.
Advanced Master Keying: Natively creates up to 78,000 standard key combinations utilizing the KB2015P keyway profile. Fully compatible with restricted security systems to eliminate unauthorized key duplication.
Technical Specifications Matrix
Engineering Property
Verified Product Specification
Brand / Manufacturer
ASSA ABLOY / Lockwood
Model Range Reference
930 Key-In-Lever Series (Exterior Deadlatch Function)
Standard Latch Backset
70mm Cylindrical Deadlatch Standard
Bore Hole Requirements
Standard 54mm Cross-Bore Cavity | 25mm Latch Edge Bore
Door Thickness Compatibility
Suits standard doors from 32mm to 48mm thick
Cylinder Internals
5-Pin Tumbler Mechanism with solid brass cylinder and brass barrel housing
Fire Rating Compliance
Tested up to 2 hours on fire door assemblies in accordance with AS1905.1:2005
Product Finish
Premium Satin Chrome Brushed (SC)
💡 Locksmith’s Installation Note:
While the Lockwood 930 mounts cleanly through a standard 54mm cross-bore hole, its commercial configuration relies on a deeper 70mm latch backset. If you are retrofitting this heavy-duty leverset over a legacy residential entryway originally prepped with a shorter 60mm backset, the lock chassis will sit too close to the door frame and fail to interface with the latch tongue. To safely update the door face, you must use a specialized cylinder hole alignment template tool to drill out the extra wood or aluminium further into the door leaf, cleanly shifting the 54mm center line back to 70mm without creating an oval cutout that slips past the rose trim lines.
Lockwood 930 Exterior Commercial Lever Deadlatch Set
$319.00 incl gst
Description
The Australian-designed Lockwood 930 Exterior Key-in-Lever Deadlatch Set offers commercial-grade performance, durability, and versatility. Specifically engineered to accommodate a vast range of architectural, commercial, and heavy-duty residential partition applications, this premium cylindrical lockset is cast from high-purity zinc alloy and finished in hard-wearing Satin Chrome (SC) to survive high-frequency operation.
As a purpose-built exterior entryway solution, the lock operates via a highly secure dual-control workflow. The outside handle remains rigid and locked until deactivated by a mechanical key or an internal turn-button release. Inserting the key smoothly locks or unlocks the exterior lever trim without directly retracting the main bolt, safeguarding the internal tracking pins against brutal handle-wrenching vandalism attempts. From the interior face, the lever handles provide an instant, single-action free egress safety escape at all times.
The Lockwood 930 Series is fully fire-tested, carrying an approved 2-hour rating on fire door assemblies in full accordance with Australian Standard AS1905.1:2005. Equipped with a standard 5-pin pin tumbler mechanism featuring a solid brass cylinder housing and brass barrel assembly, it natively supports complex institutional restricted master key matrices, maison keying configurations, and multi-level mechanical access control networks.
Key Product Features
Technical Specifications Matrix
💡 Locksmith’s Installation Note:
While the Lockwood 930 mounts cleanly through a standard 54mm cross-bore hole, its commercial configuration relies on a deeper 70mm latch backset. If you are retrofitting this heavy-duty leverset over a legacy residential entryway originally prepped with a shorter 60mm backset, the lock chassis will sit too close to the door frame and fail to interface with the latch tongue. To safely update the door face, you must use a specialized cylinder hole alignment template tool to drill out the extra wood or aluminium further into the door leaf, cleanly shifting the 54mm center line back to 70mm without creating an oval cutout that slips past the rose trim lines.
