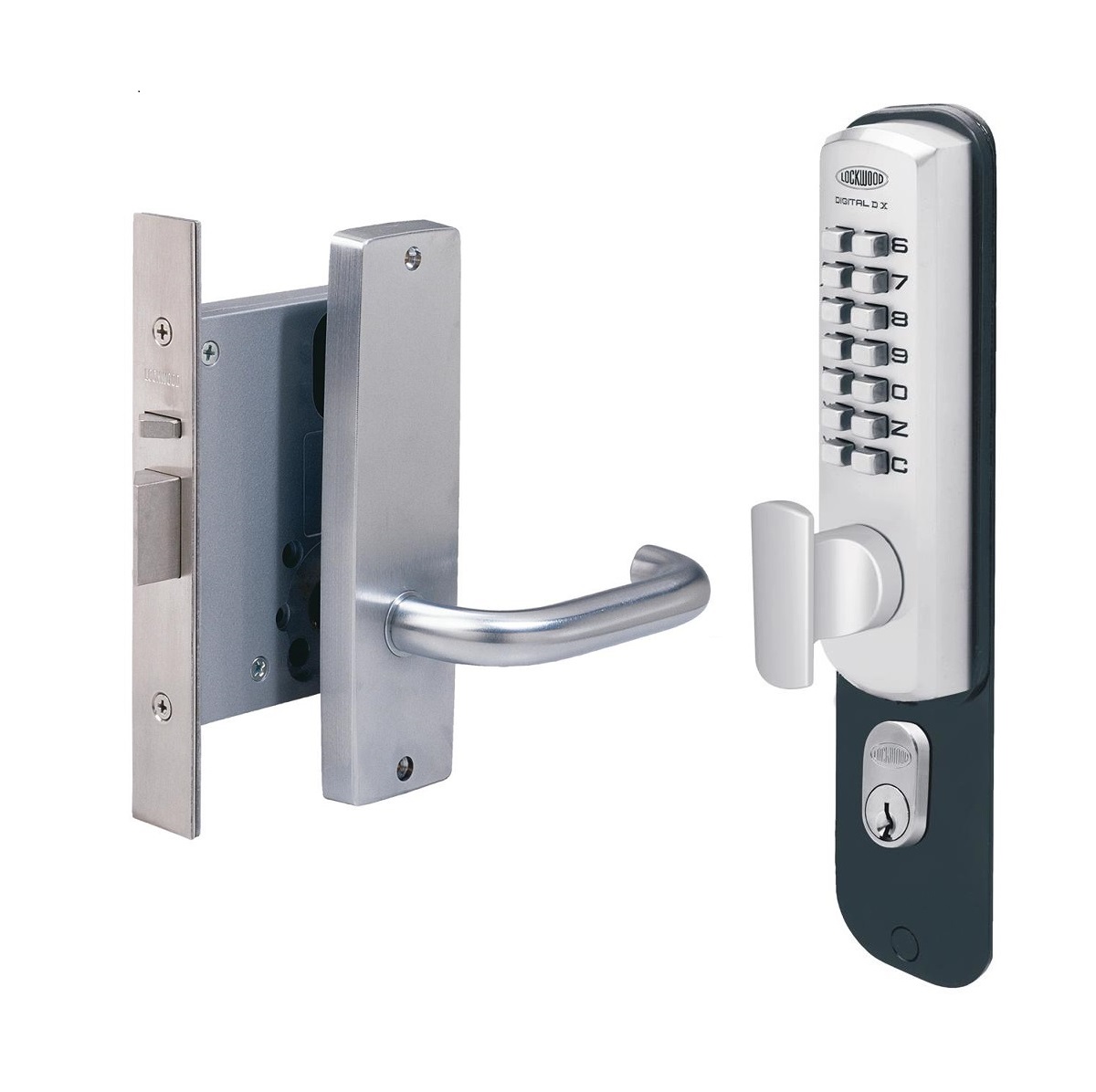

Lockwood 3572 Digital – Key Override

The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.

For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock. The factory set 5 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock. Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.

As the digital lockset utilizes mechanical operation, electrical wiring is not required. Selected locksets combined with digital access pads provide keyless entry.

Features

• Suits door thickness of 35 to 50mm
• Utilises Lockwood Synergy 3572 Series Cylinder Mortice Deadlatch
• 60mm standard backset
• Pin tumbler mechanism with round brass cylinder
• Operated by keypad outside
• Operated by lever inside
• Right handed



Operation

Outside
Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled. The key override pin tumbler cylinder enables quick access by key for authorities such as the fire brigade or those who need to carry a master key to access all rooms of a building.

Inside
By lever handle or knob at all times.

Keying

Standard Keying

• Supplied individually keyed with two keys per lock
• 78,000 key combinations
• Key blank KB2015P

Restricted Special Keying

Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

Bolt Hold-back Function

A key operated hold-back function is available. This is achieved by a pin tumbler cylinder on the inside allowing the bolt to be held back. Will also require change to internal furniture plate.

Door Furniture

Order furniture separately. For furniture to suit 3572 Series Locksets select from Lockwood 1800 and 2800 Series.

Fire Rating

Lockwood 3572 Key Override Digital DX Lockset (excluding rubber gasket) has been successfully tested to 4 hours on fire door assemblies in accordance with Australian Standard AS 1905.1: 1997, Fire Resistant Door sets.

Finish

Satin Chrome SC



Notes

* Outside code pad is Satin Chrome Pearl and the face plate is Satin Chrome Brushed. Internal furniture purchased separately.
