Description

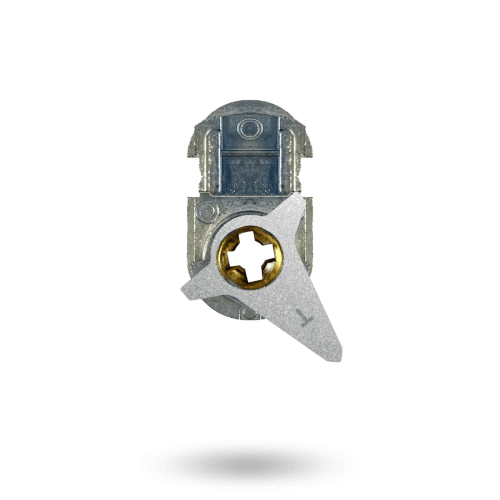

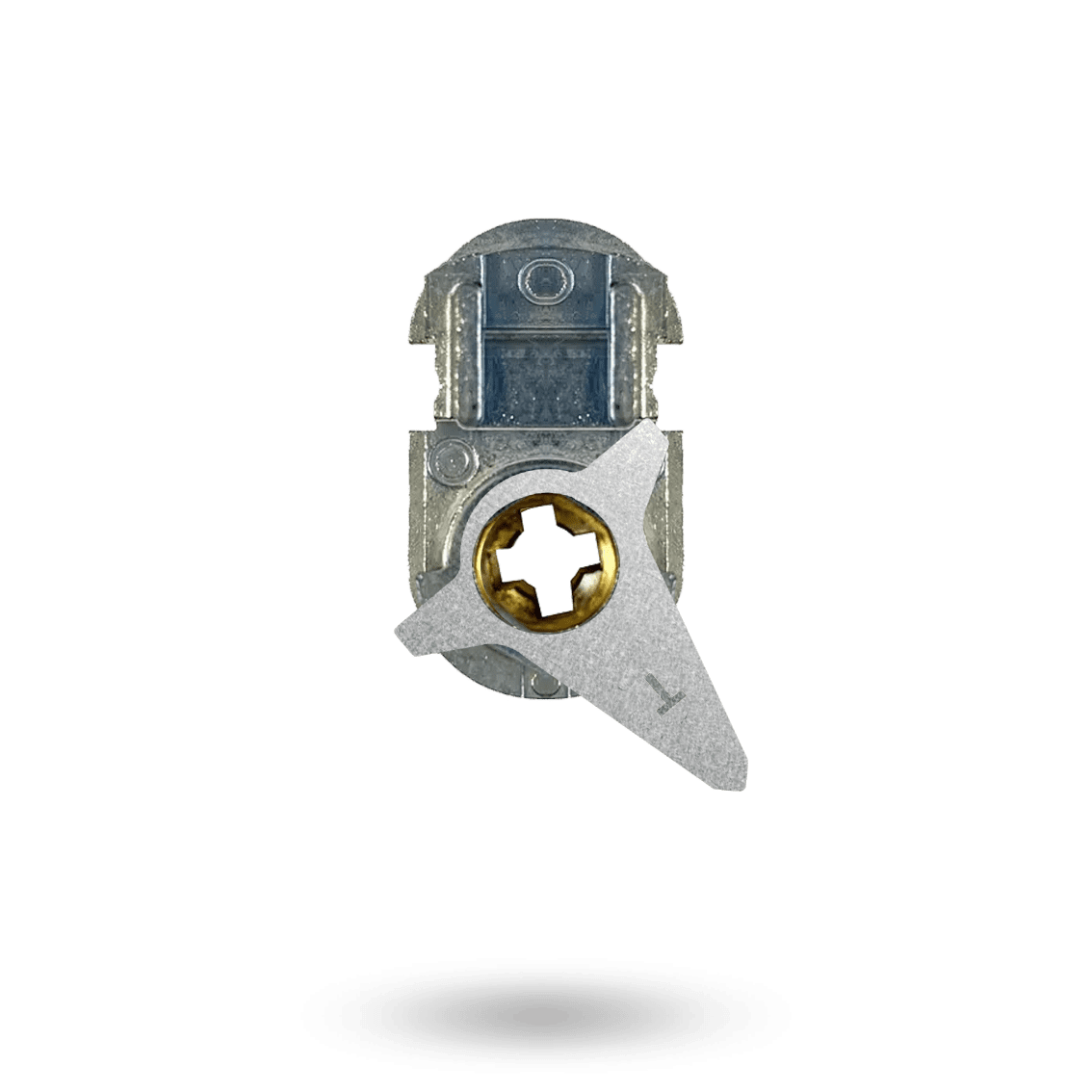

Lockwood 3571/3573 Turn Adaptor

The Lockwood Synergy® turnsnib adaptor is suitable for use with Lockwood Synergy® series mortice locks where a locking function is required, that also retracts the bolt of the turnsnib.

Features

• Deadlock turn adaptor
• Adaptor allows escape function
• Retracts the bolt
• Applicable to the 3571 Series and 3573 series locks
• Suitable for use with turnsnib or plate furniture
• Supplied in trade pack

Adaptor Installation
Establish which side the adaptor is to be located and lever out black cylinder hole plug where fitted.
Place the lock into the locked position.
Insert the Lockwood Synergy® adaptor into lock body with top of turn knob cam pointing away from the front
of the lock body. Ensure turn knob cam is engaged in the yoke of snib.
Place the retainer pin through front plate to retain the adaptor to lock. Ensure the pin is flush with front plate.
