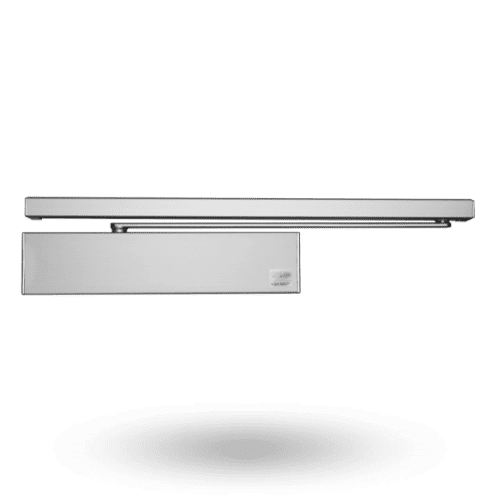

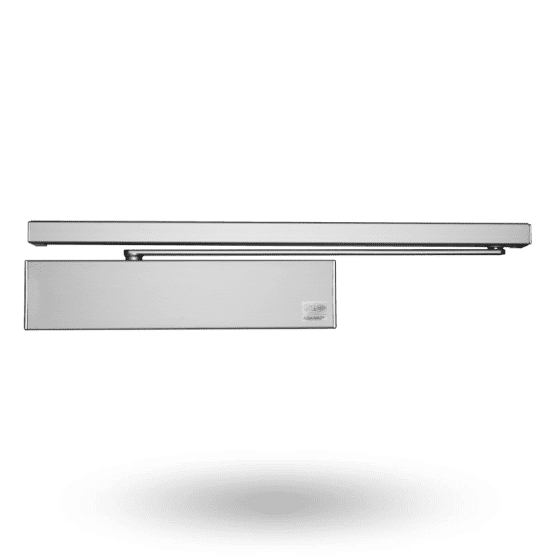

The Lockwood 2616 CAM Action Door Closer is a premium, high quality door closing device. When opening a door fitted with a Lockwood 2616 CAM Action Door Closer, the force required is less than that of a rack and pinion type door loser and continues to decrease through the opening arc.
This aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door.
The Lockwood 2616 is light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height.
Features
The 2616has a very high efficiency of 70% – 80%
EN adjustable power from 1 to 6
Back check (BC) is adjustable
Adjustable hold-open can be set at any angle up to 120° of opening
Non-handed.
Suitable for left or right hand doors.
Formed metal cover
Cast aluminium body manufactured from high performance silicon alloy
CAM action mechanism
Pull side, push side and over-door mounting
Two pressure relief valves are a standard feature to protect against abuse
Adjustable delayed action
Adjustable closing speed
Adjustable latching speed
Standards and Compliance
The Lockwood 2616 series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets. Note: Hold open option is not approved on any fire door.
Disabled Access Australian Standard (AS1428.1) Design for access and mobility.
Lockwood 2616 Cam Action Door Closer – Silver
$1160.00 incl gst
Description
The Lockwood 2616 CAM Action Door Closer is a premium, high quality door closing device. When opening a door fitted with a Lockwood 2616 CAM Action Door Closer, the force required is less than that of a rack and pinion type door loser and continues to decrease through the opening arc.
This aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door.
The Lockwood 2616 is light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height.
Features
Standards and Compliance
The Lockwood 2616 series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets. Note: Hold open option is not approved on any fire door.
Disabled Access Australian Standard (AS1428.1) Design for access and mobility.
Finish
Silver SIL
Additional information
Lockwood
Silver
