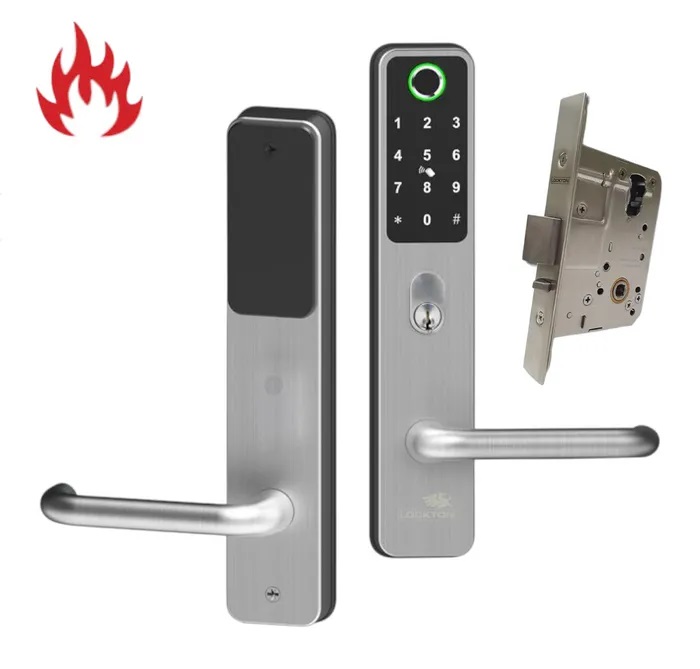

The LOCKTON Cadell52â„¢ (Commercial and Domestic Electronic Lever Lock) represents the latest evolution in heavy-duty commercial smart access hardware. Engineered to effortlessly retrofit over standard Australian mortice lock installations, this premium electronic lever system matches standard commercial hardware post spacing. It is the ultimate choice for streamlining security across apartment blocks, schools, healthcare facilities, government sectors, and modern private residences.
Built with premium 2mm pressed 304 stainless steel handles, the Cadell52 features a complete dual-housing IP66 weatherproof rating. Unlike standard smart locks, both the external keypad and the internal handle assemblies are fully sealed against water and dust ingress, allowing for reliable installation on fully exposed external perimeters and high-exposure coastal gates.
The system provides multiple flexible entry workflows, accepting Fingerprint scanning, custom PIN codes, encrypted RFID key fobs, smartphone Bluetooth commands, and a physical mechanical key override. Operating on the trusted TTLOCK phone application platform, administrators can easily grant access, track real-time entry logs, issue temporary access windows, or pair the lock with an optional Wi-Fi Gateway for full remote internet management.
Key Product Features
Dual-Chassis IP66 Protection: Both internal and external handle assemblies are fully dust-tight and water-jet certified for open exterior placement.
AS1428.1 DDA Disability Compliant: Handle lever architecture meets strict Australian and New Zealand building accessibility guidelines for ease of access and mobility.
Commercial Grade Strengths: Fire-tested and certified up to 2 hours, carrying an SL8 Physical Security benchmark and a heavy D8 Durability rating (exceeding 500,000 continuous test cycles).
Premium Cylinder Override: Equipped with a 6-pin C4 rekeyable oval cylinder that integrates seamlessly into local locksmith commercial restricted master key systems.
Free Egress Internal Handle: The internal handle is configured natively for free egress passage mode, ensuring immediate, un-hindered exit compliance at all times.
Complete Hardware Kit Includes
1 x Cadell52 Smart Lock Handle Set
1 x SG-ML60 60mm Backset High-Security Mortice Lock
1 x 50mm 6-Pin C4 Oval Cylinder (Art. 410/50-SC-KD for doors 32-64mm thick)
2 x Encrypted RFID Key Fobs
3 x Multi-length Screw/Spindle Fixing Packs
4 x AAA Alkaline Batteries, Fitting Template & Manual
Technical Specifications Matrix
Engineering Property
Verified Product Specification
Brand / Range Ecosystem
LOCKTON New Zealand | E-Series Commercial Stack
Primary Software Engine
TTLOCK Phone App (Supports unlimited Bluetooth keys and custom PIN parameters)
Physical Security Ratings
Up to 2-Hour Fire Test Certification | SL8 Security | D8 Durability (500k Cycles)
Environmental Protection
IP66 Moisture & Dust Ingress Certified on Both Handles
Handle Footprint Dimensions
263mm H x 52mm W x 22mm D | 2mm Pressed 304 Stainless Steel Construction
The Lockton Cadell52 internal handle is designed natively as a clean, free passage handle with no physical turnsnib built into the casing plate. For office environments or corporate boardrooms requiring immediate manual privacy deadlatching from inside the room without an app, please speak to the team at Beveridge Locksmiths before ordering to spec a dedicated turnsnib internal escutcheon variant. Additionally, verify your door thickness prior to installation; the bundled 50mm cylinder (Art. 410/50-SC-KD) handles doors up to 64mm flawlessly, but thicker fire doors require upgrading to a 62mm oval cylinder to guarantee un-bound mechanical tail rotation paths.
Lockton Cadell52 Commercial Smart Lock Lever Mortice Kit (IP66)
$930.00 incl gst
Description
The LOCKTON Cadell52â„¢ (Commercial and Domestic Electronic Lever Lock) represents the latest evolution in heavy-duty commercial smart access hardware. Engineered to effortlessly retrofit over standard Australian mortice lock installations, this premium electronic lever system matches standard commercial hardware post spacing. It is the ultimate choice for streamlining security across apartment blocks, schools, healthcare facilities, government sectors, and modern private residences.
Built with premium 2mm pressed 304 stainless steel handles, the Cadell52 features a complete dual-housing IP66 weatherproof rating. Unlike standard smart locks, both the external keypad and the internal handle assemblies are fully sealed against water and dust ingress, allowing for reliable installation on fully exposed external perimeters and high-exposure coastal gates.
The system provides multiple flexible entry workflows, accepting Fingerprint scanning, custom PIN codes, encrypted RFID key fobs, smartphone Bluetooth commands, and a physical mechanical key override. Operating on the trusted TTLOCK phone application platform, administrators can easily grant access, track real-time entry logs, issue temporary access windows, or pair the lock with an optional Wi-Fi Gateway for full remote internet management.
Key Product Features
Complete Hardware Kit Includes
Technical Specifications Matrix
💡 Locksmith’s Commercial Retrofit Note:
The Lockton Cadell52 internal handle is designed natively as a clean, free passage handle with no physical turnsnib built into the casing plate. For office environments or corporate boardrooms requiring immediate manual privacy deadlatching from inside the room without an app, please speak to the team at Beveridge Locksmiths before ordering to spec a dedicated turnsnib internal escutcheon variant. Additionally, verify your door thickness prior to installation; the bundled 50mm cylinder (Art. 410/50-SC-KD) handles doors up to 64mm flawlessly, but thicker fire doors require upgrading to a 62mm oval cylinder to guarantee un-bound mechanical tail rotation paths.
