Description

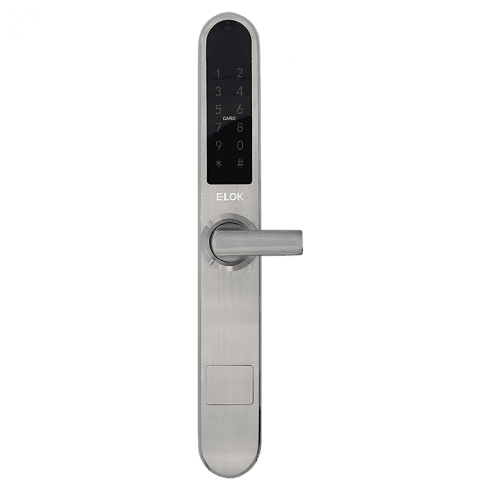

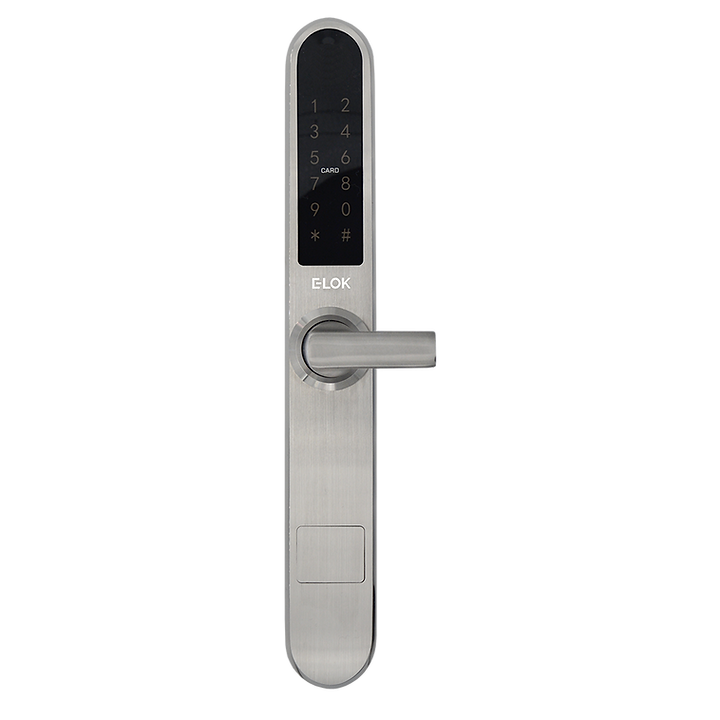

E-LOK 7-Series Smart Lock – Snib Lever

E-LOK 7-Series Smart Lock – Snib Lever. Designed for Pull Handle Doors. Purpose built to retrofit over double turn kits and works with a pull handle.

NZ’s Original Smart Lock for Aluminium Joinery powered by the easy to use and versitle E-LOK App. Easy to operate with 5 unlock methods (with E-LOK Gateway). The wide range of available backsets allows for a large range of applications making it suitable for both aluminium and timber doors.

Commonly used as a retro fit on doors with pull handles. Available with cover plates (dressing plates) used to frame in the lock and cover any unsightly holes left behind from old hardware.

E-LOK 7-Series Technical Specs

Custom PIN-Code, 200qty Max
RFID Card, 200qty Max (every lock comes with 3 tags)
Bluetooth, Via E-LOK App
Mechanical Key
Wi-Fi, Via E-LOK Gateway Wi-Fi Add-on
Fingerprint Sensor (717 Model)
IP55 Weather Rated (715)
4 x AAA Alkaline Batteries (included)
Powered by easy to use E-LOK app
Easy to use backlit Keypad
E-LOK Wi-Fi Gateway Compatible
30mm – 70mm suitable door thickness
30mm – 70mm Backset mortice locks available
Available in Matt Black (plated) or 304 Grade Brushed Stainless

Available in two different models

715 BLE Standard Model
717 BLE Fingerprint Model

Cover Plates

If retro fitting, cover plates (scar plates) can be purchased to cover any holes left behind on the door.

40mm -40x330mm Cover Plate -Covers holes from the Large Icon Levers
52mm -52x295mm Cover Plate
62mm -62x305mm Cover Plate

BLK and SS Cover plates available to order.

Instruction Manual

See manufacturers website

Need assistance picking the right lock for your door? Contact us now!

Download the E-LOK phone app from Google Playstore or Apple App Store. This is required for the intial set-up, set up passcodes and unlock E-LOK via Bluetooth.
