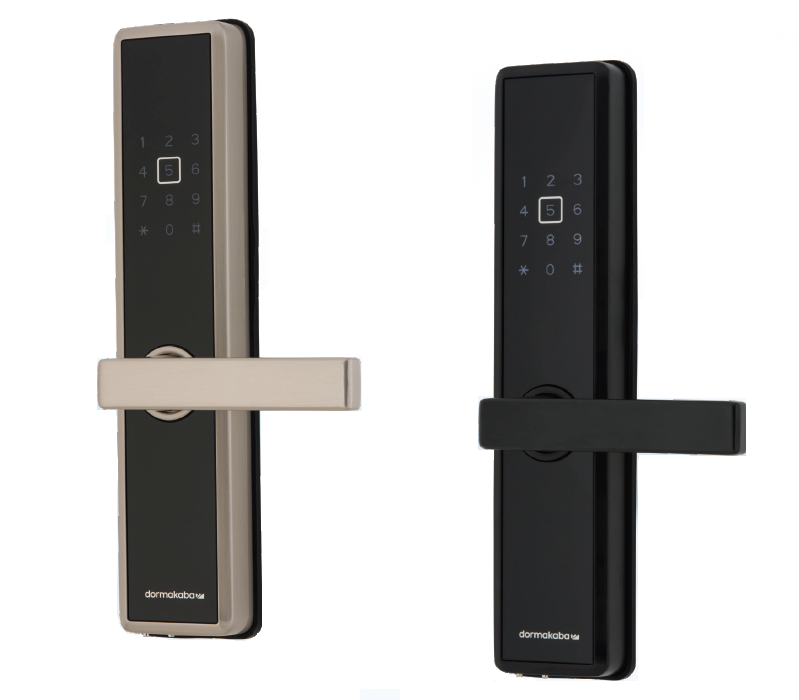

Dormakaba M5 Series BLE Digital Smart Mortice Lock

Description

Upgrade your property’s security and convenience with the premium dormakaba M5 Series BLE Smart Lock. Engineered to combine architectural elegance with uncompromising physical security, the M5 offers four flexible access methods: Smartphone Bluetooth app, secure PIN codes, RFID cards/fobs, or standard mechanical key override. Equipped with a heavy-duty, Australian-style MS2602 commercial mortice lock, it exceeds the highest levels of mechanical security and durability (AS4145.2) while carrying a certified fire-rating for peace of mind.

---

Commercial Security Meets Smart Access Control

Change the way you think about access control with the dormakaba M5 Series Digital Mortice Lock. Designed as a robust standalone unit that requires absolutely no complex external wall wiring, this smart lock runs cleanly on standard AA alkaline batteries to simplify installation on both residential and commercial entry doors.

The M5 puts ultimate visibility and control into the palm of your hand via the official dormakaba Smart Lock app. From your phone, the administrator can manage users, view complete entry audit data logs, and generate time-sensitive remote access PIN codes to share with short-term visitors, cleaners, or contractors via email or text message.

Setting up the unit is exceptionally simple. With the built-in, step-by-step voice-guided programming menu, adding or removing user codes, fobs, and administration permissions is as easy as typing your master PIN and following the clear, spoken audio prompts.

---

Key Features

• Four Unlock Options: Seamlessly unlock via PIN code, RFID card, key-ring proximity fob, Bluetooth smartphone app, or physical key.
• Commercial Mortice Chassis: Includes the premium dormakaba MS2602 mortice lock body, built to exceed rigorous AS4145.2 structural security standards.
• Fire Tested & Certified: Successfully furnace-tested up to 2 hours on fire-resistant doorset assemblies in strict accordance with AS1905 Part 1.
• Voice-Guided Setup: Features smart, step-by-step vocal menu prompts to ensure programming credentials takes under a minute.
• Time-Sensitive Key Sharing: Easily issue custom, expiring visitor entry codes remotely through the smartphone app infrastructure.
• Advanced Security Alarms: Outfitted with an integrated break-in/tamper alarm and a wrong-try lockout penalty that freezes the keypad for 15 minutes after multiple incorrect entries.
• Built-In Privacy Mode: Engaging the internal privacy latch completely isolates the outer digital keypad, restricting outside entry solely to the mechanical master key.

---

Technical Specifications

• Door Compatibility: Fits standard doors with a thickness range between 35mm – 50mm.
• Keypad Configuration: Illuminated 12-key digital touch-pad surface with built-in scramble code password protection.
• Credential Storage: Supports up to 100 unique RFID cards/fobs and up to 10 distinct user PIN codes (6–12 digits in length).
• Power Source: Operates on 4 x 1.5V AA Alkaline batteries featuring an integrated low-battery alert warning tone.
• Emergency Backup Power: Fitted with external emergency terminals to connect a 9V battery if internal power drains completely.
• Weather Resistance: Certified to an IP54 ingress rating to block dust and light exterior moisture splashes.

---

Box Inclusions

• 1 x dormakaba M5 Smart Lock Escutcheon Trim (Internal & External Plates)
• 1 x dormakaba MS2602 Series High-Security Commercial Mortice Lock Casing
• 2 x Secure Proximity RFID Cards
• 2 x Compact Key-Ring Style Proximity RFID Fobs
• 3 x Mechanical Master Override Keys
• 1 x Installation Template & Architectural Fixings Pack
