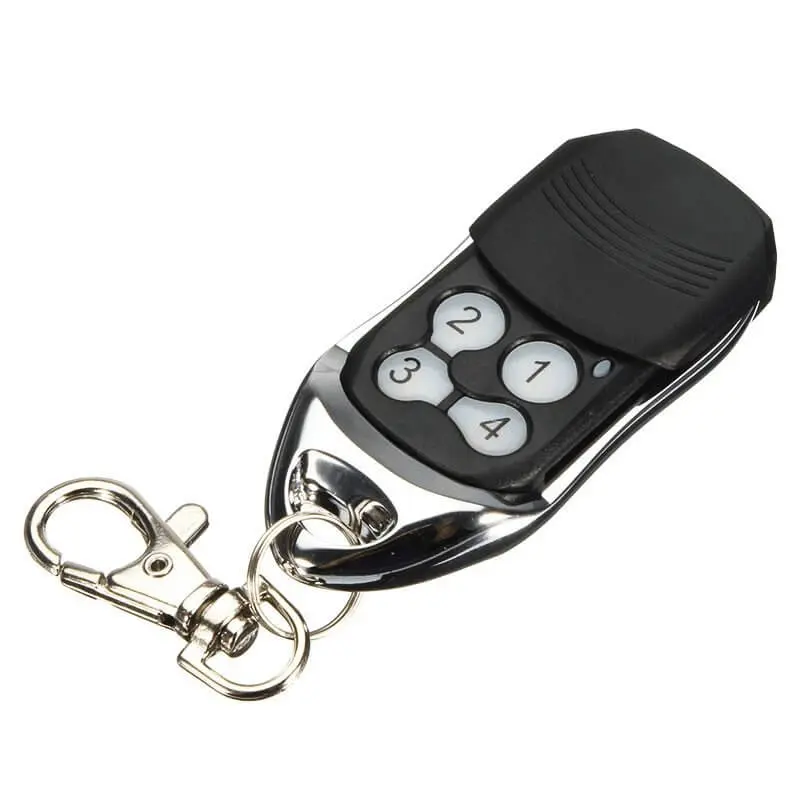

Aftermarket Tri-Tran Compatible Garage Door Remote

➔ Dominator Openers: PanelPro (SDO-4V1), ADV (SDO-2V2), Controll-A-Door S (SDO-3V2), and all residential sectional or roller door systems using Tri-Tran coding.

➔ B&D Openers: Controll-A-Door P, Controll-A-Door H, CAD4, CAD5, CAD P Diamond, and industrial roll-up motors fitted with Tri-Tran cards.

➔ Garador Openers: 434MHz multi-frequency residential opening systems.

Type A: Openers with a “Door Code” or “Code” Button

1. Remove the clear plastic protective cover from the controls on the ceiling motor or wall panel.
2. Press and release the “Door Code” (or “Code”) button on the receiver card. The programming LED indicator will flash.
3. Slide open the remote cover, then press and hold your selected button for 2 seconds and release for 2 seconds.
4. Press that exact same remote button a second time for 2 seconds. The programming LED will stop flashing and go out to confirm pairing.

Type B: Openers with a Digital “Mode” Menu Screen

1. Press the “Mode” selection button on the side of the motor chassis repeatedly until the LED indicator highlights the Remote Control Icon.
2. Press and hold the “Door Down” arrow button on the motor housing.
3. While holding the arrow button down, press the remote button for 2 seconds, release for 2 seconds, and press it again for 2 seconds.
4. The motor courtesy light will flash to confirm the coding sequence is complete.

Type C: Standalone External Receiver Boxes (Gates & Commercial Systems)

1. Remove the outer casing cover from the standalone external receiver box mounted next to your gate controller or industrial motor panel.
2. Press and release the internal button marked “Learn” or “SW1” on the card. The receiver LED will turn on.
3. Press the remote button for 2 seconds, release, and press it a second time for 2 seconds.
4. The receiver board LED will turn off to confirm the rolling code transmission has been saved.
