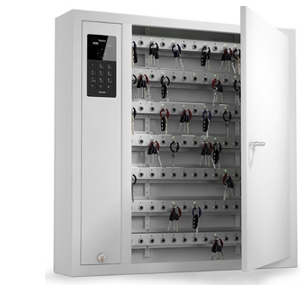

Intelligent KeyBox with key identification for monitoring and controlling each and every key.Space for a maximum of 84 key hooks (maximum of 6 key strips with 14 spaces on each strip). Display with simple menu navigation. Equipped with battery backup, alarm contact for door and buzzer.Administration performed using the PC program KeyWin5. Can be expanded using multiple key cabinets in the same system. Can be expanded using a 9500 EC from the Expansion range.
Users
Selected or random PIN code. Option to
change code at cabinet(s).
Inactivation of users.
Validity period for users.
Unlimited number of users
Groups
Groups for users and keys.
Time channels.
Simple administration via groups.
Keys
Time restriction.
Searchable hidden key ID.
Graphical key overview.
One key in one or more cabinets.
Free or fixed key position.
Administrators
Unlimited number of administrators.
Adjust administrator rights.
Selection of cabinet(s) for administration.
Only information about own cabinet(s).
Activities registered in log.
Key Cabinet
Search function in display.
Information about who has key.
Service menu for configuration.
Administration code with full authorization.
Stand-alone or network.
Automatic or fixed IP address.
Door alarm.
Key alarm.
Burglar alarm.
Choice of language.
Connection for external reader.
Connection for external alarm.
Event Log
Log from PC and cabinet(s).
Selection of what will be shown in log.
Intelligent search function.
Sort by date or events.
Clear alarm indications.
Reports via CSV file and PDF.
Modular Design Features
Designed to accommodate between 14 and 84 keys (or key sets), the innovative 9500 SC Series design allows for starting small and later expanding by adding multiples of 14 key positions (called expansion key strips) as required.
Expansion Key Strips are defined as locking or non-locking. Locking receptor strips lock the key fobs in place restricting access to authorized personnel down to the individual key. Non-locking expansion strips provide a solution for organizations requiring less security but still an audit of key usage. LED lighting indicate which keys can be taken, which keys are restricted and assist the user when returning the key to the correct location. The cabinets can be supplied with a clear polycarbonate or metal door. The control panel consists of the user interface which includes the screen, keypad and access card or biometric reader.
9500 SC Series
with 2 Expansion Cabinets
PC Software Administration
The 9400 SC Series is administered from the user friendly KeyWin 5 Pro software supporting a Microsoft Access or SQL database.The 9400 SC Series can communicate with the KeyWin 5-Pro software using a range of different options including Ethernet, GPRS, RS485, RS232 and modem. Multiple systems can be networked together over a local or wide area network to provide accountability for a limitless number of keys administrated from multiple PC workstations running the KeyWin 5-Pro software.
User Identification
The 9500 SC Series can support any type of access control device required to identify a user to the key system. Supported devices include RFID proximity readers from all leading access control manufacturers, magstripe, barcode and biometric
technologies such as fingerprint, etc.
Specifications
Cabinet Dimensions: 746 x 730 x 140 mm Weight: 30 kg Power Supply: Input: AC120-240V
Output: VDC Battery Backup: DC12V 3.2Ah (24hours) Power Consumption: 65W max/0.3A Cabinet Material: Steel Color Options: Light Grey Powder Coated
Operating Temp: Ambient For Indoor Use Only Mounting: Wall or Cabinet stand mounted Key Positions: 14-84 Receptor Strip Support: Locking, Non Locking, Users per systems: 10,000 plus Communications: Ethernet, GPRS, RS485, RS232, Modem Reader Interface: Wieguard Door Material: Solid Metal or optional Clear Polycarbonate

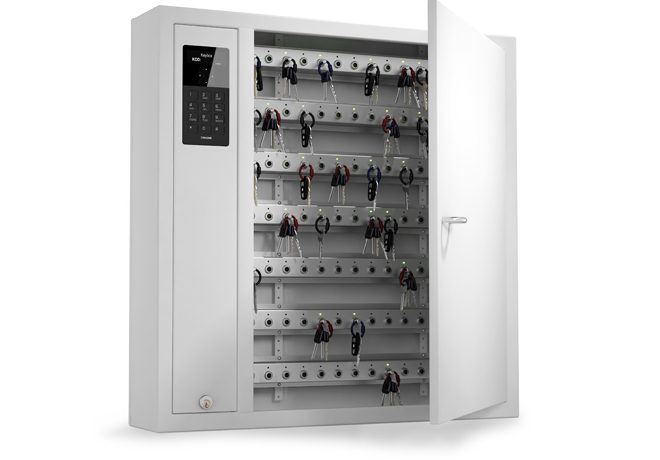

Creone Key-Box 9500 SC Series
Description
Key-Box 9500 SC Series
Intelligent KeyBox with key identification for monitoring and controlling each and every key.Space for a maximum of 84 key hooks (maximum of 6 key strips with 14 spaces on each strip). Display with simple menu navigation. Equipped with battery backup, alarm contact for door and buzzer.Administration performed using the PC program KeyWin5. Can be expanded using multiple key cabinets in the same system. Can be expanded using a 9500 EC from the Expansion range.
Users
Selected or random PIN code. Option to
change code at cabinet(s).
Inactivation of users.
Validity period for users.
Unlimited number of users
Groups
Groups for users and keys.
Time channels.
Simple administration via groups.
Keys
Time restriction.
Searchable hidden key ID.
Graphical key overview.
One key in one or more cabinets.
Free or fixed key position.
Administrators
Unlimited number of administrators.
Adjust administrator rights.
Selection of cabinet(s) for administration.
Only information about own cabinet(s).
Activities registered in log.
Key Cabinet
Search function in display.
Information about who has key.
Service menu for configuration.
Administration code with full authorization.
Stand-alone or network.
Automatic or fixed IP address.
Door alarm.
Key alarm.
Burglar alarm.
Choice of language.
Connection for external reader.
Connection for external alarm.
Event Log
Log from PC and cabinet(s).
Selection of what will be shown in log.
Intelligent search function.
Sort by date or events.
Clear alarm indications.
Reports via CSV file and PDF.
Modular Design Features
Designed to accommodate between 14 and 84 keys (or key sets), the innovative 9500 SC Series design allows for starting small and later expanding by adding multiples of 14 key positions (called expansion key strips) as required.
Expansion Key Strips are defined as locking or non-locking. Locking receptor strips lock the key fobs in place restricting access to authorized personnel down to the individual key. Non-locking expansion strips provide a solution for organizations requiring less security but still an audit of key usage. LED lighting indicate which keys can be taken, which keys are restricted and assist the user when returning the key to the correct location. The cabinets can be supplied with a clear polycarbonate or metal door. The control panel consists of the user interface which includes the screen, keypad and access card or biometric reader.
9500 SC Series
with 2 Expansion Cabinets
PC Software Administration
The 9400 SC Series is administered from the user friendly KeyWin 5 Pro software supporting a Microsoft Access or SQL database.The 9400 SC Series can communicate with the KeyWin 5-Pro software using a range of different options including Ethernet, GPRS, RS485, RS232 and modem. Multiple systems can be networked together over a local or wide area network to provide accountability for a limitless number of keys administrated from multiple PC workstations running the KeyWin 5-Pro software.
User Identification
The 9500 SC Series can support any type of access control device required to identify a user to the key system. Supported devices include RFID proximity readers from all leading access control manufacturers, magstripe, barcode and biometric
technologies such as fingerprint, etc.
Specifications
Cabinet Dimensions: 746 x 730 x 140 mm
Weight: 30 kg
Power Supply: Input: AC120-240V
Output: VDC
Battery Backup: DC12V 3.2Ah (24hours)
Power Consumption: 65W max/0.3A
Cabinet Material: Steel
Color Options: Light Grey Powder Coated
Operating Temp: Ambient For Indoor Use Only
Mounting: Wall or Cabinet stand mounted
Key Positions: 14-84
Receptor Strip Support: Locking, Non Locking,
Users per systems: 10,000 plus
Communications: Ethernet, GPRS, RS485, RS232, Modem
Reader Interface: Wieguard
Door Material: Solid Metal or optional Clear Polycarbonate
