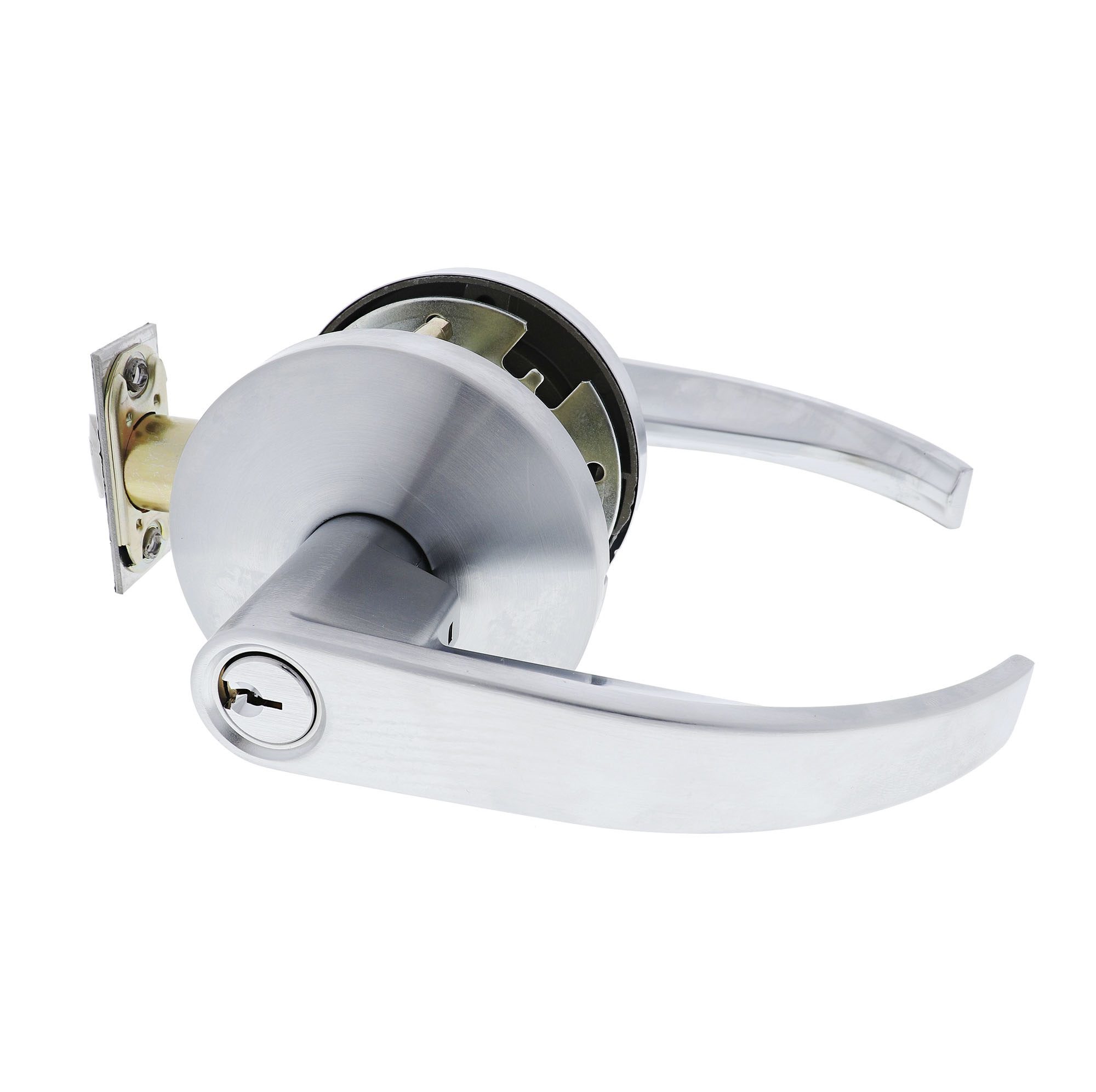

Distinctive by its solid look and large rose, the Carbine Doncaster PD7000 series have served the commercial market place successfully for many years and have gained a reputation for being a proven performer in that time.

• Fire rated for up to 4 hours
• Tested to 400,000 openings no failures
• Cylindrical fixing
• Suits KeyLine LKW9 (Silca LW5) profile
• Cylinder is a 6 pin PD style brass cylinder
• Spare cylinder available for TES5 to suit Gainsborough keyway CLAIC-TES5
• Supplied standard with a 70mm backset, 60mm available upon request and an extension tube to extend to 127mm is available
• Square shaped lever handles with a strong lever return spring
• 85mm wide rose with two locating fixing holes to prevent the leverset from spinning
• Suitable for doors 35mm – 50mm in thickness extension kit is provided to make it suit the 50mm
• Concealed fixing
• Stainless steel latch bolt with a 12mm projection
• Optional choice of a standard or clutching function, the clutching model features an operation where the outside handle still moves when locked, ideally to prevent lever damage from forced entry
• L1 lever design is compliant with BCA codes and AS1428
