Description

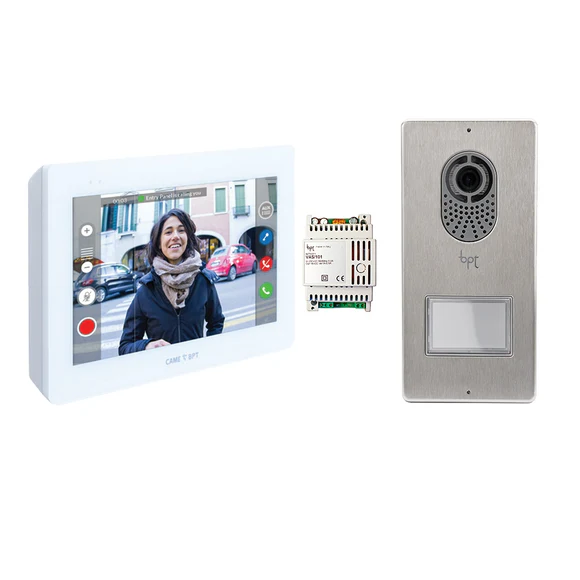

BPT LITHOS Video Entry Panel + Wi-Fi Handset

Video door intercom – complete set

Brand product from the Italian manufacturer
2-wire bus technology
Modern touch screen 7 “indoor video unit with handsfree function
App for control and call acceptance via smartphone
Color set with high-resolution camera and video monitor
Illuminated bell button and stainless steel tableau door station
Expandable (also later)

Door station:

Surface in brushed stainless steel
High resolution color camera with LED support at night
Digital adjustment of the camera opening angle
Standard as AP, with flush-mounted box and frame also as flush-mounting
Blue key illumination with nameplate insert
IP54 degree of protection
Surface mounted (WxHxD) 99x207x30 mm wall mounting
Can also be installed as a concealed installation with additional flush-mounted box and frame (for an additional charge / LSI and LCI). Dimensions for UP: 135x243x6.5 mm flush-mounted

Video internal unit:

7 “touch screen monitor with glass display and modern design
1024 x 600 resolution with optical bonding technology
Display avoids reflections and fogging
HD video quality (when using HD IP camera)
Video recording possible during the call (recording)
Answering machine function (you are not at home and the door station answers when ringing)
Integration of external cameras possible
Invidual background and ringtones selectable
Answering machine, you can retrieve who has rung when you were not at home
Connection to your W-Lan network
App for the smartphone downloadable. Transfer the call to your smartphone and control some functions
Dimensions: 185 x 129 x 24 mm. (W)

XTS 7 WH WIFI
Video indoor station 7 “with hands-free function and touch screen, surface mounting, color white

LVC / 01
Video outdoor station Lithos with color display, system X1

DPH
Double height button

VAS / 101
Supply 230V, 50 Hz, 60VA, module 4 units low DIN rail
