Description

BPT LITHOS Video Entry Panel

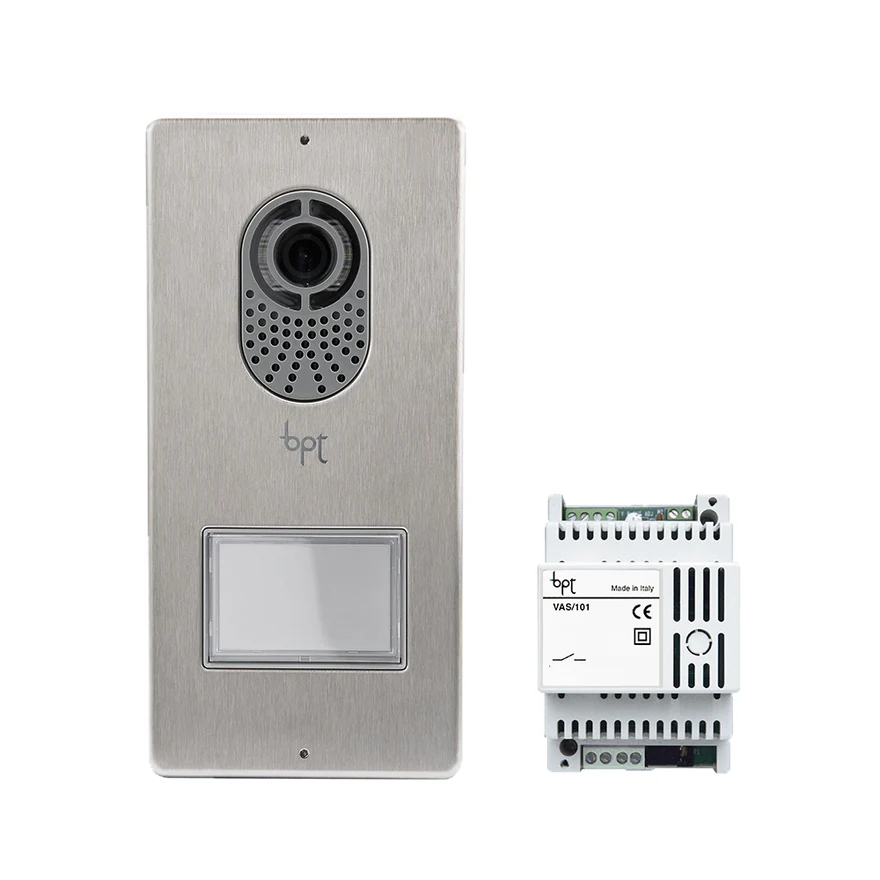

BPT Lithos Video Entry Panel. Entry call station for 1-4 apartment.

Lithos is the monolithic colour video entry panel created by BPT for the X1 two-wires system. Compact and ultra slim (protruding just 30 mm from the wall), Lithos will blend perfectly into any setting, thanks to its soft lines and elegant brushed stainless steel finish.

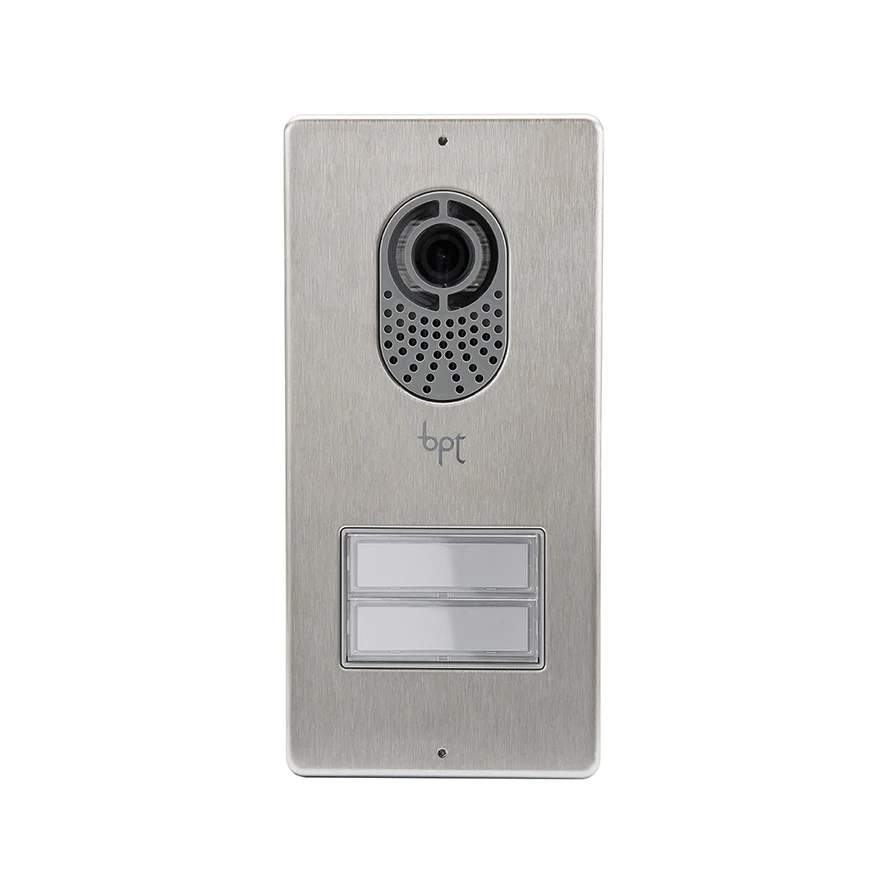

Lithos can be fitted with single or double pushbuttons for single-family or two family systems, and features the intercom function as standard without the need for supplementary power supply. In addition, it can be used to create systems designed to handle up to four calls.

Lithos can be installed wall-mounted or recessed.

NOTE: Buttons are sold seperately for maximum flexibility

Choose from

DPH – Thangram – Double Size Button
DPS – Single button (2 required for 2 buttons)
DPD – Double half button (2 required for 4 buttons)

Key Features

• Circuit board for X1 system, microphone and loudspeaker.
• NTSC/PAL video camera, resolution 680×512, horizontal angle of aperture 94°.
• Caller illumination using 24 high-efficiency LEDs.
• Protection rating IP 54.
• Dimensions (WxHxD): 99x207x30 mm.
• Adjustment of microphone/loudspeaker volume and door lock release time.
• Local command for door lock, inputs for door lock release buttons.
• Blue LEDs (4) for backlighting of the push button with name label.
• Manual or software programming via PC.
