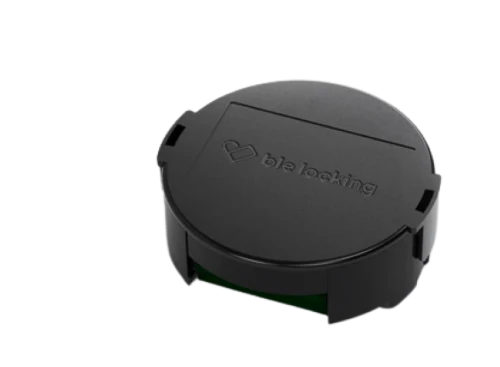

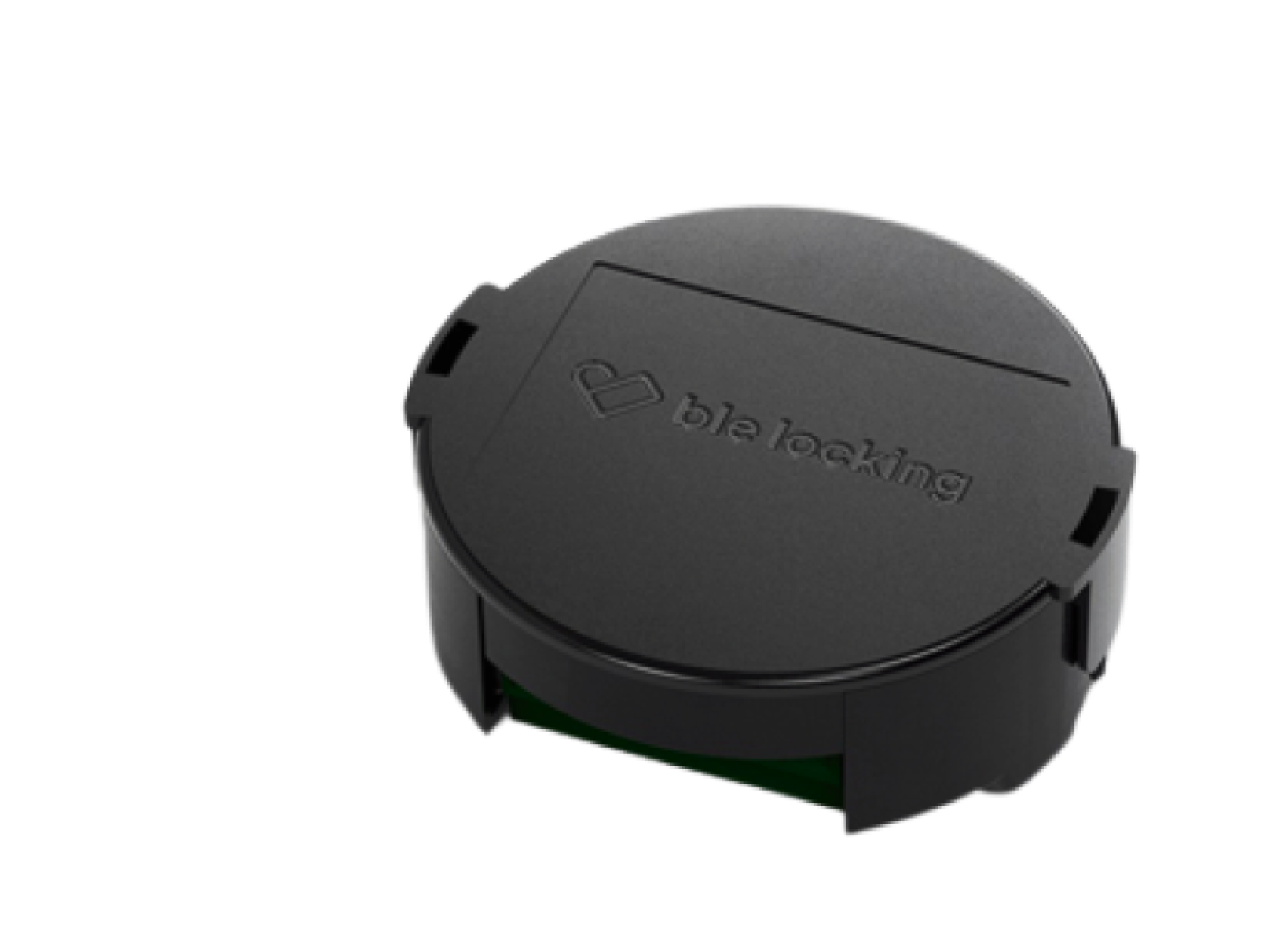

BLE Locking Module

BLE Locking Module. All keys safely in one place – your mobile phone. The BLE Locking Standard 2 module enables digital management for key-operated door locks. All your digital keys can be used safely and conveniently with the BLE Locking mobile app and access rights can be shared with anyone you want. Digital keys can be used with and without internet access, depending on the type of the key. In addition, the module allows you to connect one Wiegand based card reader with a PIN pad. The product works with electric locks, garage doors and gates.

Power Supply: 12VDC

Relays (Quantity & Type): 1x non-latching, maximum load 10A, 240VAC or maximum load 10A, 12VDC

Radio Protocols & Network: Wi-Fi 802.11 b/g/n, Bluetooth V4.2 BR/EDR & BLE, Extrernal Wi-Fi/BT antenna (optional)

Additional Connectivity: 1x Wiegand reader or 2x analogue inputs for HW switch/PIR sensor/Hall-effect sensor

Physical Connectors: Relay in/out, power, input switch 7-gang terminal for cables up to 1mm2

IP Rating: IP41

Electrical Consumption: Normal operation 50mA Maximum 200mA

Working Temp: -40 degrees celsius up to 75 degrees celsius

Weight: 40g
