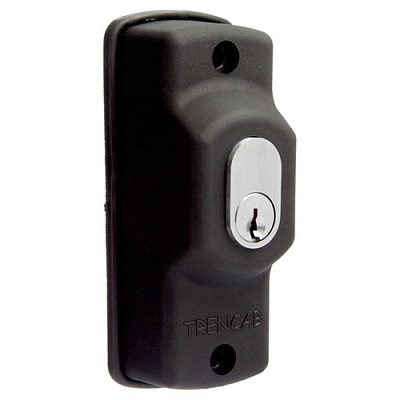

The Trencab key switch is a versatile easy to install unit that suits many applications.

It is supplied as a spring loaded momentary function with the option to be changed to on/off with the cams provided.

Made from glass filled nylon for strength and IP67 rated it is ideal for external applications. 570 cylinder supplied.

• On/off and spring return momentary key switch.
• 12 to 48Vdc or 24Vac.
• Suitable for indoor and outdoor applications.
• Dimensions 117 (L) x 42.5 (D) x 47 mm (W).
• Uses 570 cylinder LW4 version supplied.
• Rubber gasket standard.
• IP67 rated.
• 500 mm wiring leads attached.
• Body and cams made from tough glass filled nylon (black).
• On/off application cams provided.
• Compatible to most restricted keying systems.
• Supplied with 2 x stainless steel T20 Torx security screws.
