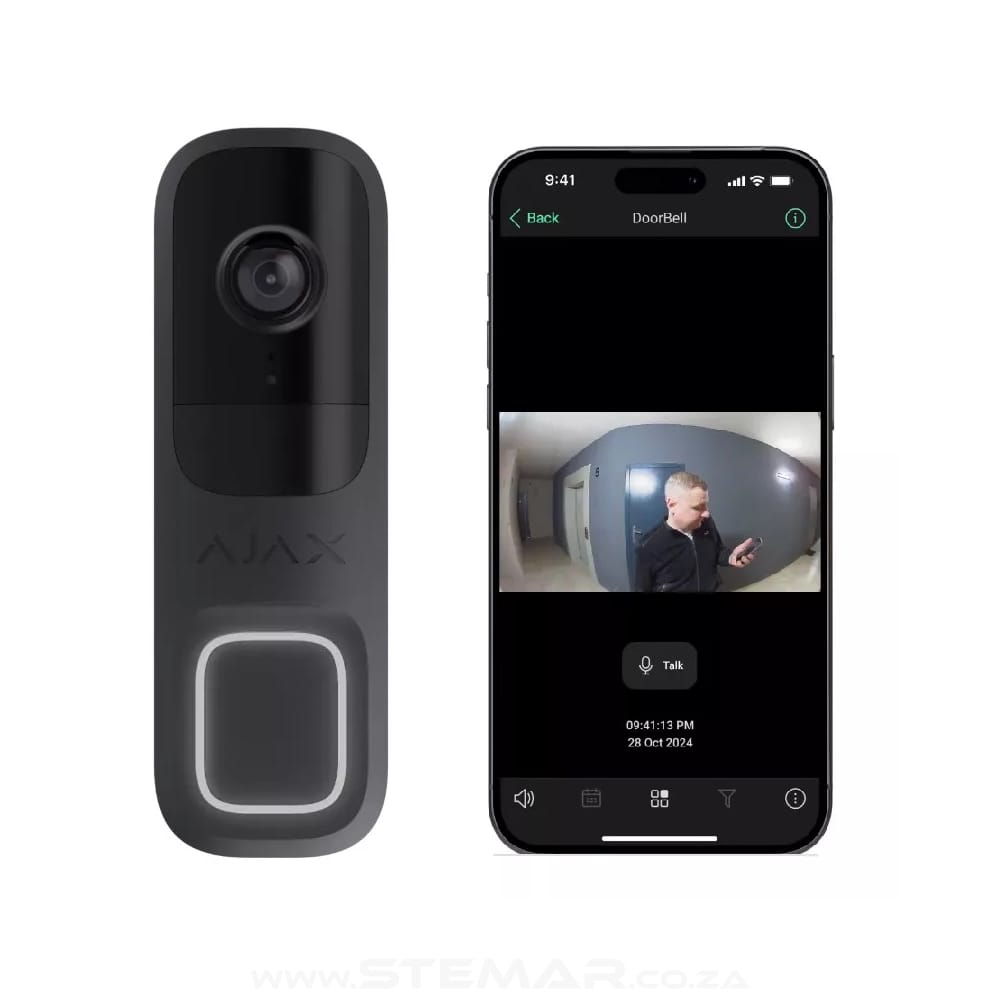

The AJAX DoorBell is a wired video doorbell with a 4MP HDR camera, PIR motion sensor and built-in AI that recognises people, pets and vehicles. Visitors can be seen and spoken to through the AJAX app, and doorbell events sit alongside the rest of your AJAX alarm system.
The DoorBell streams video over 2.4GHz Wi-Fi and uses AJAX Jeweller and Wings radio to the hub as a backup channel for events, alarms and photos if the Wi-Fi drops out. An AJAX hub is required, and recordings are stored on an AJAX NVR or AJAX Cloud Storage (subscription). It is powered from 12–24V DC or 16–24V AC, and can ring an existing wired chime using the included BellKit. Available in white, grey, graphite or black. Supplied and professionally installed by Beveridge Locksmiths across Greater Wellington.
Features
The AJAX DoorBell brings front-door video into your AJAX security system:
➔ 4MP HDR Camera: 4MP CMOS sensor recording up to 2688 x 1520 with HDR for bright and backlit entrances, and a 155° horizontal / 90° vertical view.
➔ PIR & AI Detection: A PIR sensor (up to 4m, 3 sensitivity levels) combined with on-board AI that recognises people, pets and vehicles.
➔ IR Night Vision: Infrared illumination up to 6m for clear footage after dark.
➔ Two-Way Audio: Talk to visitors from the AJAX app, with noise suppression and echo cancellation always active.
➔ Wi-Fi with Jeweller & Wings Backup: Video streams over 2.4GHz Wi-Fi using AJAX’s encrypted JetSparrow protocol. Events, alarms and photos continue over Jeweller and Wings radio to the hub if Wi-Fi is lost.
➔ NVR or Cloud Recording: Record to an AJAX NVR on the same network or to AJAX Cloud Storage, with up to four privacy zones.
➔ Wired Chime & Backup Battery: Works with an existing wired chime via the included BellKit, and a built-in 600mAh battery keeps it running through short power cuts and heats the unit in cold weather.
Specifications
Specification
Detail
Manufacturer
AJAX Systems.
Model
AJAX DoorBell.

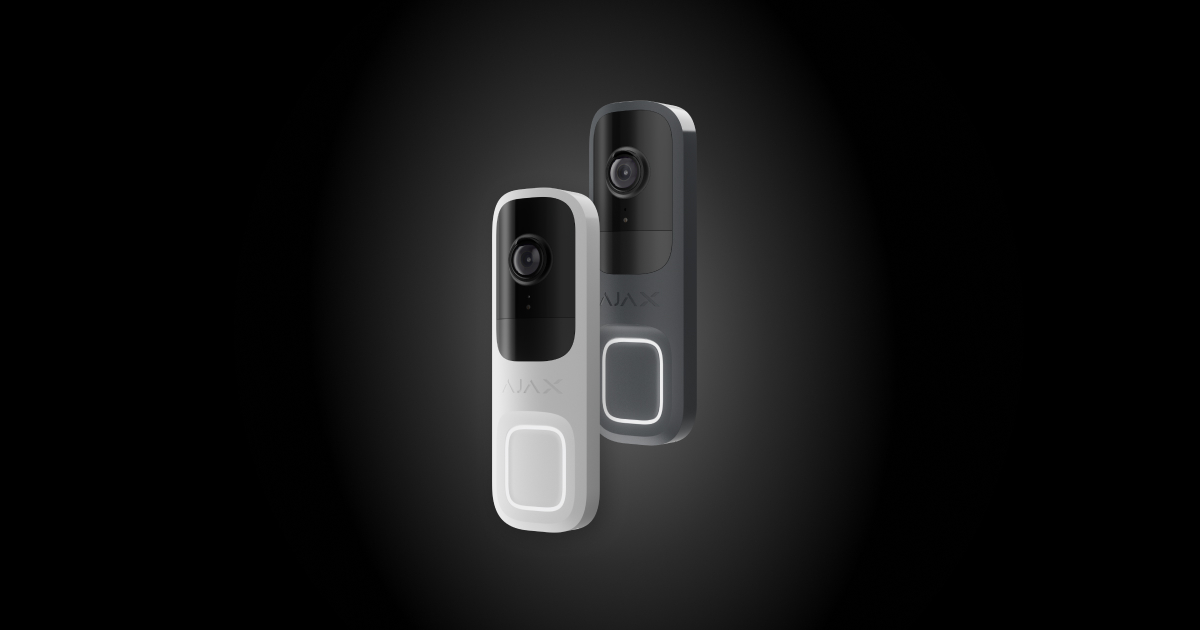

Colours
White (RAL 9003), Grey (RAL 7004), Graphite (RAL 7024) or Black (RAL 9005).
Camera
4MP CMOS, up to 2688 x 1520, HDR, H.264.
Field of View
155° horizontal, 90° vertical.
Night Vision
IR illumination up to 6m.
Motion Detection
1 x PIR, up to 4m, 120° H / 100° V, 3 sensitivity levels. AI detection of people, pets and vehicles.
Audio
Two-way audio with noise suppression and echo cancellation.
Communication
Wi-Fi 802.11 b/g/n, 2.4GHz (main channel). Jeweller and Wings radio to the hub as a backup channel.
Hub Requirement
Requires a compatible AJAX hub (OS Malevich 2.27 or later). Uses one hub device slot.
Recording
AJAX NVR or AJAX Cloud Storage (subscription). No on-board storage.
Power
12–24V DC or 16–24V AC 50/60Hz, 10W. With a wired chime: 3A or more (DC) or 10VA or more (AC).
Backup Battery
Built-in 600mAh Li-ion for short power cuts and heating in cold weather.
Dimensions / Weight
145 x 47 x 34mm / 163g.
Environment
Indoor and outdoor. IP54, -25°C to +60°C, humidity up to 90%.
In the Box
DoorBell, SmartBracket mounting panel, 2 x wedge brackets, BellKit, installation kit and quick start guide.
Not Included
AJAX hub, AJAX NVR or cloud subscription, power supply/transformer and chime.
Warranty
24 months (AJAX).
Supply & Installation
AJAX products are supplied and installed by Beveridge Locksmiths across Greater Wellington, including the CBD, Hutt Valley, Porirua and the Kāpiti Coast. AJAX products are not sold online, so this listing is for product information only.
The DoorBell is installed and commissioned by our AJAX PRO installers, including mounting, connecting to your Wi-Fi and AJAX hub, chime connection and app setup. We only install AJAX products that we supply, and do not install customer-supplied or previously purchased units.
The DoorBell runs from an existing doorbell transformer or a 12–24V supply. Where a new transformer or mains connection is needed, the 230V connection must be carried out by a registered electrician. A reliable 2.4GHz Wi-Fi signal is required at the door.

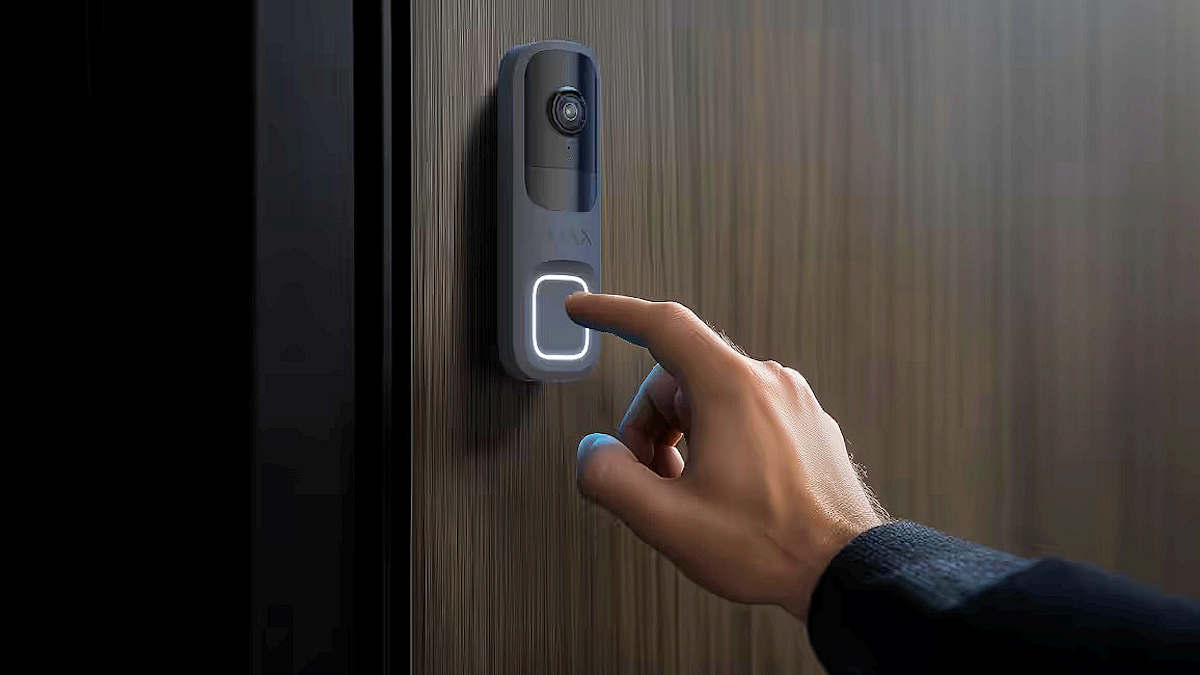

Although the DoorBell is IP54 rated, we recommend mounting it under cover (porch, eave or recessed entry) on exposed Wellington sites and out of direct sunlight. AJAX recommends a mounting height of around 1.2–1.5m. For a quote, call 0800 566 1111 (ext 1) or send us an enquiry.
AJAX DoorBell Smart AI Video Doorbell | Supply & Installation Wellington
Description
The AJAX DoorBell is a wired video doorbell with a 4MP HDR camera, PIR motion sensor and built-in AI that recognises people, pets and vehicles. Visitors can be seen and spoken to through the AJAX app, and doorbell events sit alongside the rest of your AJAX alarm system.
The DoorBell streams video over 2.4GHz Wi-Fi and uses AJAX Jeweller and Wings radio to the hub as a backup channel for events, alarms and photos if the Wi-Fi drops out. An AJAX hub is required, and recordings are stored on an AJAX NVR or AJAX Cloud Storage (subscription). It is powered from 12–24V DC or 16–24V AC, and can ring an existing wired chime using the included BellKit. Available in white, grey, graphite or black. Supplied and professionally installed by Beveridge Locksmiths across Greater Wellington.
Features
The AJAX DoorBell brings front-door video into your AJAX security system:
➔ 4MP HDR Camera: 4MP CMOS sensor recording up to 2688 x 1520 with HDR for bright and backlit entrances, and a 155° horizontal / 90° vertical view.
➔ PIR & AI Detection: A PIR sensor (up to 4m, 3 sensitivity levels) combined with on-board AI that recognises people, pets and vehicles.
➔ IR Night Vision: Infrared illumination up to 6m for clear footage after dark.
➔ Two-Way Audio: Talk to visitors from the AJAX app, with noise suppression and echo cancellation always active.
➔ Wi-Fi with Jeweller & Wings Backup: Video streams over 2.4GHz Wi-Fi using AJAX’s encrypted JetSparrow protocol. Events, alarms and photos continue over Jeweller and Wings radio to the hub if Wi-Fi is lost.
➔ NVR or Cloud Recording: Record to an AJAX NVR on the same network or to AJAX Cloud Storage, with up to four privacy zones.
➔ Wired Chime & Backup Battery: Works with an existing wired chime via the included BellKit, and a built-in 600mAh battery keeps it running through short power cuts and heats the unit in cold weather.
Specifications
Supply & Installation
AJAX products are supplied and installed by Beveridge Locksmiths across Greater Wellington, including the CBD, Hutt Valley, Porirua and the Kāpiti Coast. AJAX products are not sold online, so this listing is for product information only.
The DoorBell is installed and commissioned by our AJAX PRO installers, including mounting, connecting to your Wi-Fi and AJAX hub, chime connection and app setup. We only install AJAX products that we supply, and do not install customer-supplied or previously purchased units.
The DoorBell runs from an existing doorbell transformer or a 12–24V supply. Where a new transformer or mains connection is needed, the 230V connection must be carried out by a registered electrician. A reliable 2.4GHz Wi-Fi signal is required at the door.
Although the DoorBell is IP54 rated, we recommend mounting it under cover (porch, eave or recessed entry) on exposed Wellington sites and out of direct sunlight. AJAX recommends a mounting height of around 1.2–1.5m. For a quote, call 0800 566 1111 (ext 1) or send us an enquiry.
