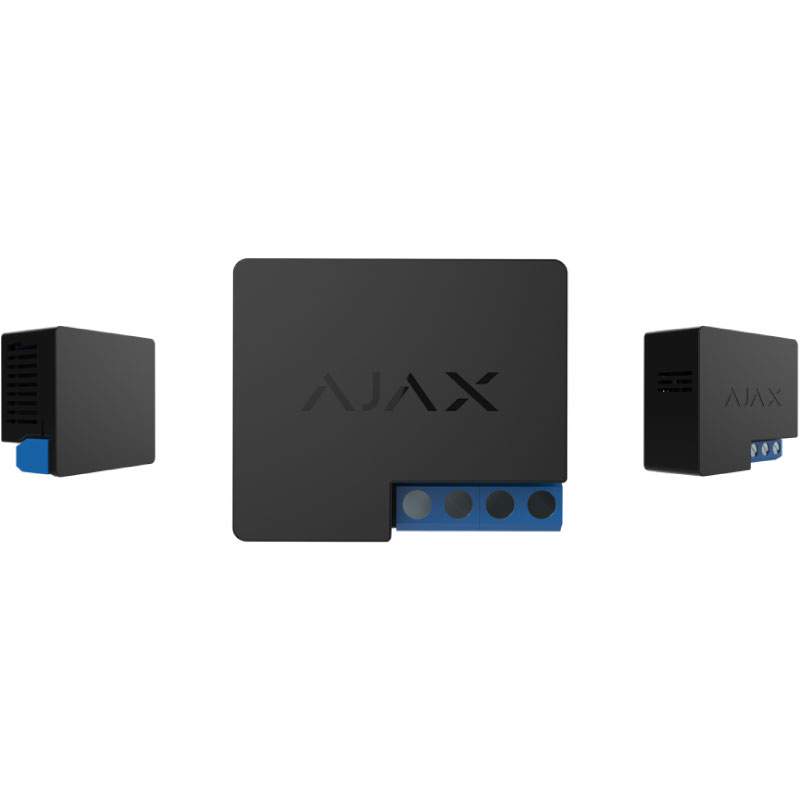

The AJAX Relay connects wirelessly to the Ajax Hub to facilitate remote control of garage doors, electric gates and electric locks. The built-in relay contacts are not galvanically connected to the device itself, so they can be connected to input control circuits for different equipment imitating a push button, switch etc.
Jeweller radio technology
Communication range with central unit up to 1,000m in an open space
Two-way communication between devices
Operating frequencies – 868.0-868.6 MHz
Self-adjusting RF output power – up to 25 mW
Block encryption based on AES algorithm
Device scanning period – 12 to 300 sec
Protected from power surges and overheating
Security Grade 2
The device switches off automatically during overcurrent, voltage surge and overheating
Information on voltage level is available in the mobile app
Tech Specs
Classification: radio channel relay unit
Device type: wireless
Installation method: at the electric motor controller
Compatibility: operates only with Ajax Hub and Hub Plus
Actuating element: electromagnetic relay
Relay service life: 200,000 switching actions
Voltage protection: max: 36.5 V, min: 6.5 V
Alarm signal delivery time: 0.15 sec
Power supply: 7 to 36 V (DC only)
Operating temperature range: 0 degree C to +64 degree C
Anti-sabotage: protection against fraud jamming devices
Dimensions: 38x25x18 mm
Weight: 32 g
Warranty
All Ajax products have a 2 year manufacturers warranty (excluding batteries) – no batteries required for this device
AJAX AU Relay
Description
AJAX AU Relay
The AJAX Relay connects wirelessly to the Ajax Hub to facilitate remote control of garage doors, electric gates and electric locks. The built-in relay contacts are not galvanically connected to the device itself, so they can be connected to input control circuits for different equipment imitating a push button, switch etc.
Jeweller radio technology
Tech Specs
Warranty
All Ajax products have a 2 year manufacturers warranty (excluding batteries) – no batteries required for this device
Additional information
AJAX
9AU
2 Years (excluding batteries)
